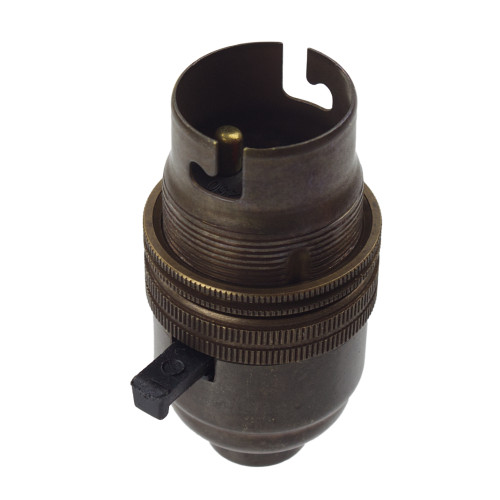

BC | B22 | Bayonet Cap Old English Switched Lampholder 10mm Entry with Stem Lock
This Old English BC Switched Lampholder 10mm Entry with Stem Lock is an excellent option for sprucing up a sentimental table lamp or light fitting of your own design. With the sliding bar switch on the connection unit, it adds a beautiful timeless feature to the light fitting.
This lampholder is a standard B22 lampholder except it has a lock collar at the bottom with an internal locking screw. This prevents any unwanted untwisting of the lampholder.
Comes in 4 parts comprising of the cap which is the section that screws onto the fixing of the light fitting, the centre connection unit where you will connect the live (Brown) and neutral (Blue) and Earth (Yellow and Green) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).
The manufacturer of BC | B22 | Bayonet Cap Old English Switched Lampholder 10mm Entry with Stem Lock is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
As this is a metal lampholder, ensure you use a 3 core mains flex to provide an earth connection to this lampholder.
Spec:
This Old English BC Switched Lampholder 10mm Entry with Stem Lock is an excellent option for sprucing up a sentimental table lamp or light fitting of your own design. With the sliding bar switch on the connection unit, it adds a beautiful timeless feature to the light fitting.
This lampholder is a standard B22 lampholder except it has a lock collar at the bottom with an internal locking screw. This prevents any unwanted untwisting of the lampholder.
Comes in 4 parts comprising of the cap which is the section that screws onto the fixing of the light fitting, the centre connection unit where you will connect the live (Brown) and neutral (Blue) and Earth (Yellow and Green) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).
The manufacturer of BC | B22 | Bayonet Cap Old English Switched Lampholder 10mm Entry with Stem Lock is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
As this is a metal lampholder, ensure you use a 3 core mains flex to provide an earth connection to this lampholder.
Spec:
- Lamp Cap: BC | B22 | Bayonet Cap
- Thread: 10mm x 1mm Pitch
- Height: 62.6mm
- Diameter: 31.6mm
- Min Shade Hole Size: 26mm
- Max Shade Hole Size: 31mm
- Max Wattage: 60w
- Material: Brass
- Finish: Old English
- Colour:
- Old English
- Switched:
- Yes
- Base:
- 10mm
- Shade Compatible:
- Yes
- Material:
- Brass
- MAX Wattage:
- 60W
- Lamp Type:
- BC | B22
