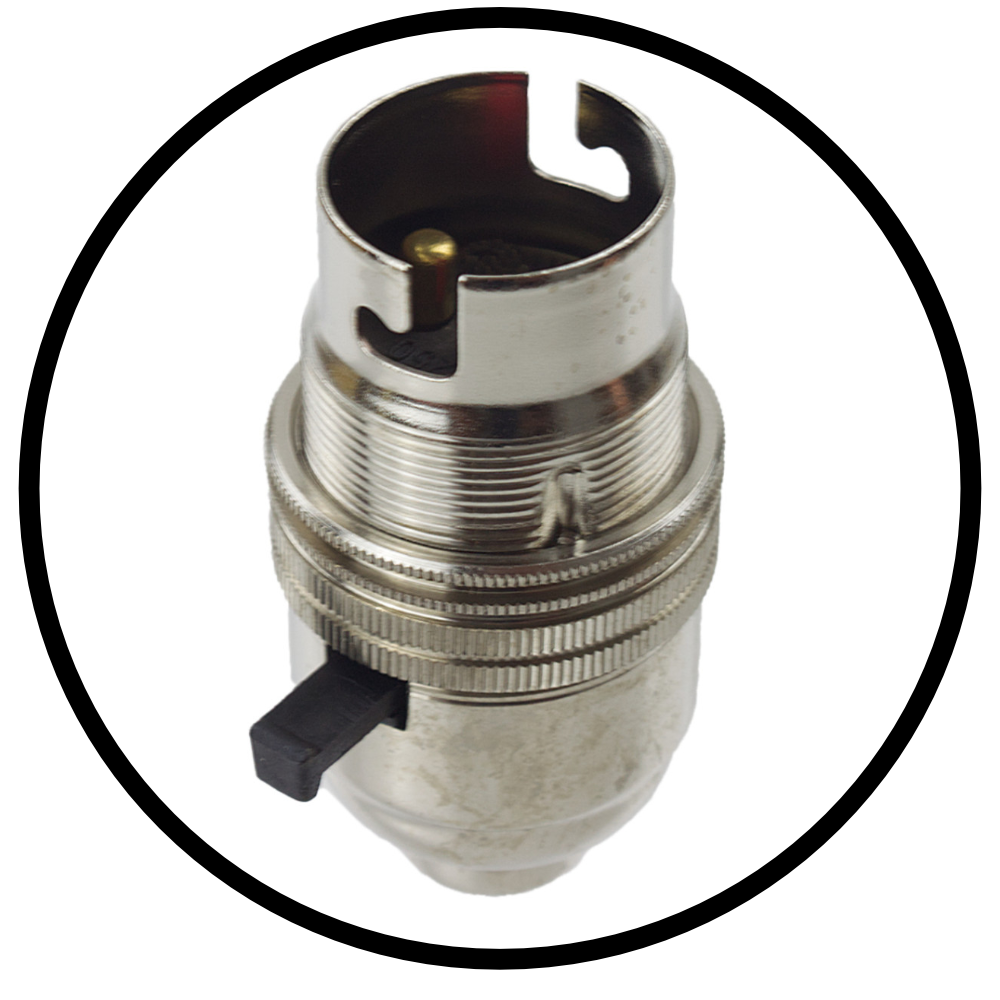

BC | B22 | Bayonet Cap Nickel Switched Safer Lampholder 10mm Entry

This BC | B22 | Bayonet Cap Nickel Switched Safer Lampholder 10mm Entry is an excellent option for sprucing up a sentimental table lamp or light fitting of your own design. With the sliding bar switch on the connection unit, it adds a beautiful timeless feature to the light fitting.

Comes in 4 parts comprising of the cap which is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp) the centre connection unit where you will connect the live (Brown) and neutral (Blue) and Earth (Yellow and Green) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).

The manufacturer of BC | B22 | Bayonet Cap Nickel Switched Safer Lampholder 10mm Entry is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.

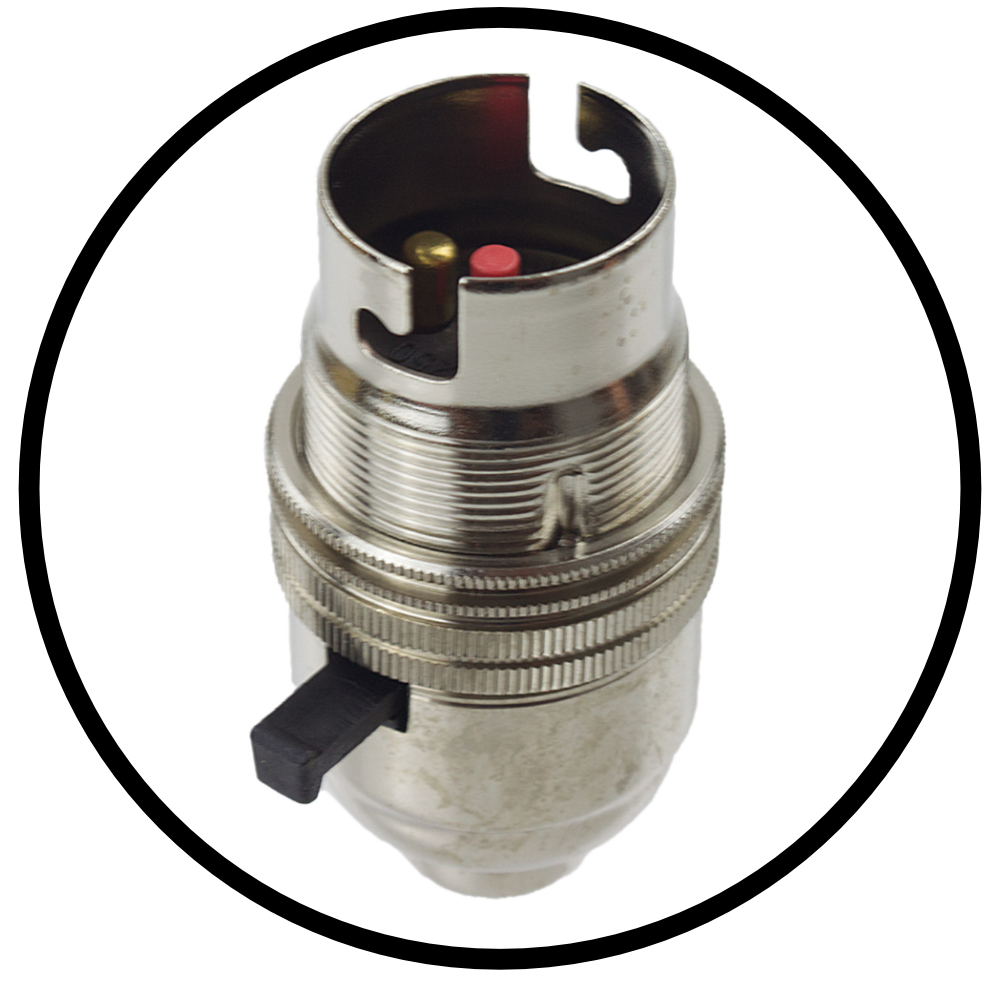

Please Note: This Lampholder has a red safety device pin in between the lamp pins, this means that a light bulb has to be inserted for the switch to work. The push bar will turn to the off position as soon as the lamp is removed so turning the power to the lampholder off.

This BC Safety Lampholder is ideal for children’s bedrooms or the elderly with this safety device.

Do not try to force the push bar without a lamp fitted, it will not slide.

As this is a metal lampholder, ensure you use a 3 core mains flex to provide an earth connection to this lampholder.

  • Lamp Cap: BC | B22 | Bayonet Cap
  • Thread: 10mm x 1mm Pitch
  • Height: 60mm
  • Diameter: 32mm
  • Min Shade Hole Size: 26mm
  • Max Shade Hole Size: 32mm
  • Max Wattage: 60w
  • Material: Brass
  • Finish: Nickel
Shade Compatible:
MAX Wattage:
Lamp Type:
BC | B22
