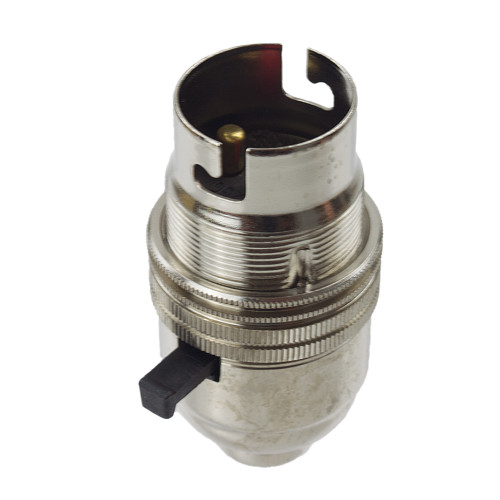

BC | B22 | Bayonet Cap Nickel Switched Lampholder 10mm Entry 2850943

£3.39 (Inc. VAT)
£2.82 (Ex. VAT)
SKU:
2850943
EAN:
2850943
Shipping:
From £4.29 - Tracked 48 (See T&C's)
Colour:
Nickel
Switched:
Yes
Base:
10mm
BC | B22 | Bayonet Cap Nickel Switched Lampholder 10mm Entry 2850943
BC | B22 | Bayonet Cap Nickel Switched Lampholder 10mm Entry 2850943

This BC | B22 | Bayonet Cap Nickel Switched Lampholder 10mm Entry 2850943 is an lovely option for freshening up a sentimental table lamp for light fitting of your own design. With the sliding bar switch on the connection unit, it adds a beautiful timeless feature to the light fitting.

Comes in 4 parts comprising of the cap which is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp) the centre connection unit where you will connect the live (Brown) and neutral (Blue) and Earth (Yellow and Green) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).

The manufacturer of BC | B22 | Bayonet Cap Nickel Switched Lampholder 10mm Entry 2850943 is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.

There is an earth connection inside the lampholder.

Comes with a shade ring to attach a 30mm lamp shade.

Spec:
Lampholder Cap: BC | B22 | Bayonet Cap
Height: 60mm
Diameter including shade ring: 32mm
Switched: Yes
Fixing Thread Size: 10mm
Material: Brass
Finish: Nickel

This Lampholder must be wired with a 3-core flex that provides the correct earth connection.
