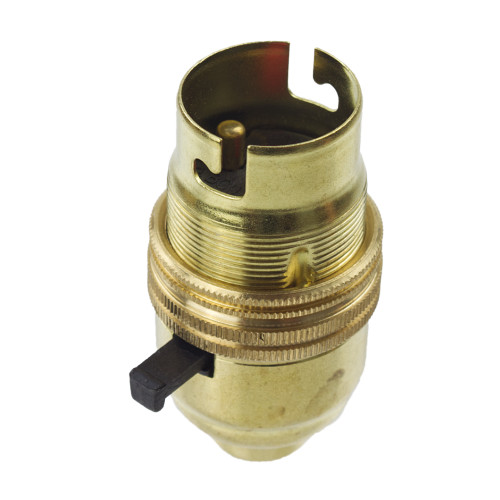

BC | B22 | Bayonet Cap Brass Switched Lampholder 10mm Entry

BC | B22 | Bayonet Cap Brass Switched Lampholder 10mm Entry

The BC | B22 | Bayonet Cap Brass Switched Lampholder 10mm Entry is a perfect option for sprucing up a sentimental table lamp or light fitting of your own design. With the sliding bar switch on the connection unit, it adds a elegant timeless feature to the light fitting.

Comes in 4 parts comprising of the cap which is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp) the centre connection unit where you will connect the live (Brown) and neutral (Blue) and Earth (Yellow and Green) then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).

The manufacturer of BC | B22 | Bayonet Cap Brass Switched Lampholder 10mm Entry is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.

Due to this stunning lampholder being metal they will require a 3 Core cable in order to Earth the lampholder.

Spec:

• Lampholder Cap: BC | B22 | Bayonet Cap
• Thread: 10mm x 1mm Pitch
• Height: 60mm
• Diameter: 32mm
• Min Shade Hole Size: 26mm
• Max Shade Hole Size: 32mm
• Max Wattage: 60w
• Material: Brass
• Finish: Brass

Additional Information: If you need extra information regarding this product, such as; disassembling the lampholder, alignment and wiring - scroll through the additional product images and/or visit the 'Help Centre' on our website.
