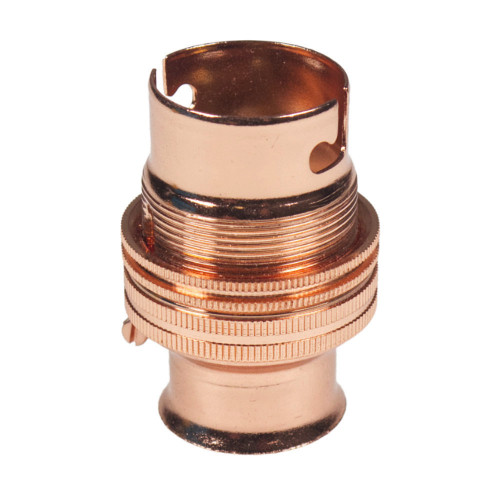

BC | B22 | Bayonet Cap Copper Lampholder with 20mm Base Thread
This BC | B22 | Bayonet Cap Copper Lampholder with 20mm Base Thread is a brilliant replacement for a sentimental table lamp or a light fitting of your own design. Quintessential to use on 20mm electrical conduit as it threads straight onto the ends of the pipe work creating a stunning industrial and steam punk style light fitting.
Comes in 4 parts comprising of the cap which comes complete with the Earth tag on the side and is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp) the centre connection unit where you will connect the live (Brown) and neutral (Blue) and then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).
The manufacturer of BC | B22 | Bayonet Cap Copper Lampholder with 20mm Base Thread is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
Due to this charming lampholder being metal it will require a 3 Core cable to Earth the lampholder.
Spec:
This BC | B22 | Bayonet Cap Copper Lampholder with 20mm Base Thread is a brilliant replacement for a sentimental table lamp or a light fitting of your own design. Quintessential to use on 20mm electrical conduit as it threads straight onto the ends of the pipe work creating a stunning industrial and steam punk style light fitting.
Comes in 4 parts comprising of the cap which comes complete with the Earth tag on the side and is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp) the centre connection unit where you will connect the live (Brown) and neutral (Blue) and then the top section which will screw over the connection unit and onto the cap. Not to forget the locking ring (Thicker Ring) that holds the cap and skirt together and the shade ring the clamp the shade (Thinner Ring).
The manufacturer of BC | B22 | Bayonet Cap Copper Lampholder with 20mm Base Thread is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
Due to this charming lampholder being metal it will require a 3 Core cable to Earth the lampholder.
Spec:
- Lamp Cap: BC | B22 | Bayonet Cap
- Height: 46mm
- Diameter: 32mm
- Thread: M20 x 1.5mm Pitch
- Material: Brass
- Finish: Copper Plated
- Colour:
- Copper
- Switched:
- No
- Base:
- 20mm
- Max Wattage:
- 60W
- Shade Compatible:
- Yes
- Lamp Type:
- BC | B22
- Material:
- Brass
