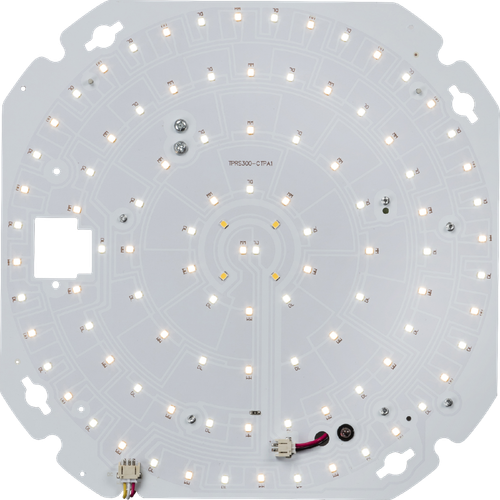

Knightsbridge's latest innovation is the wattage and colour-adjustable LED gear trays.
It reduces complexity by combining triple wattage and colour adjustments into a single gear tray. Secured to the casing* via four butterfly clips paired with the push-fit terminal block, ensures a speedy installation.
The gear trays are compatible with the Tenax One, Tenax Quad and Tenax Pro range of casings.
- Casing is not included and must be purchased separately.
- 3-hour emergency with a Lithium (LiFePO4) battery
- 3000K/ 4000K/ 5700K adjustable
- 10W/ 15W/ 20W adjustable
- Push-fit terminals with loop-in-loop-out capabilities
- Options available: standard, emergency, self-test emergency, microwave sensor, emergency with a microwave sensor, self-test emergency with a microwave sensor, with daylight sensor, emergency with a daylight sensor
Specification
| Length | 235 mm |
|---|---|
| Width | 235 mm |
| Projection | 28 mm |
| Construction | Aluminium |
| Class | II |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Emergency | Maintained / Non-maintained / Switched |
| Light Technology | SMD LED |
| Dimmable | No |
| CCT | 3000/4000/5700 |
| Beam Angle | 120 |
| Light Colour | CCT |
| Lumens | 1360/1480/1405, 1905/2090/1960, 2345/2630/2415 |
| CRI | ≥85 |
| Driver Type | Constant Current |
| Warranty | 5 years |
- Material:
- Aluminium
- Dimmable:
- No
- Colour Temperature:
- 3000K | Warm White
- Colour Temperature:
- 4000K | Cool White
- IP Rating:
- IP20
