Kit 18 Installation Guide

In this guide I have used all parts that you get from Kit 18 and installing them onto a wooden block that I have already pre-drilled a hole in.

1. Install the cable cord set, ensuring not to damage it as you push/pull it through your light fitting. Ensure to leave this loose so you can adjust the length when on step 4.

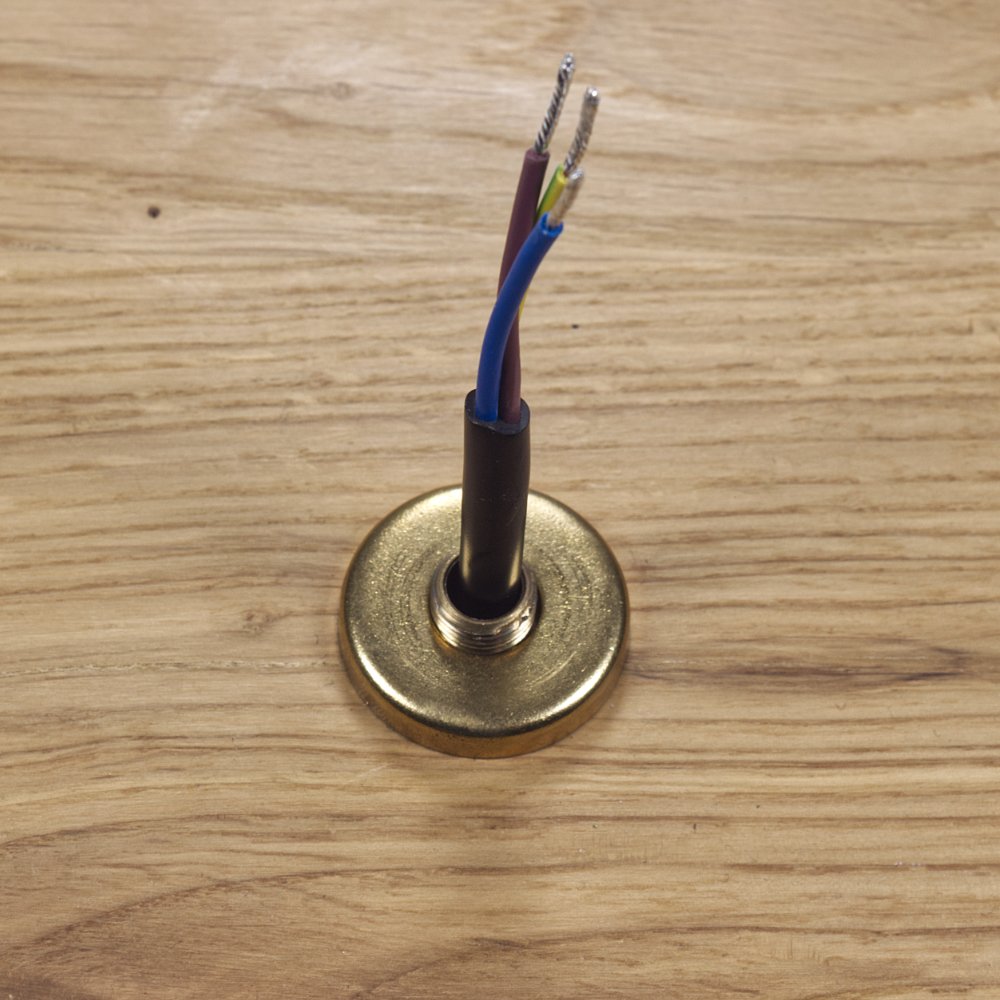

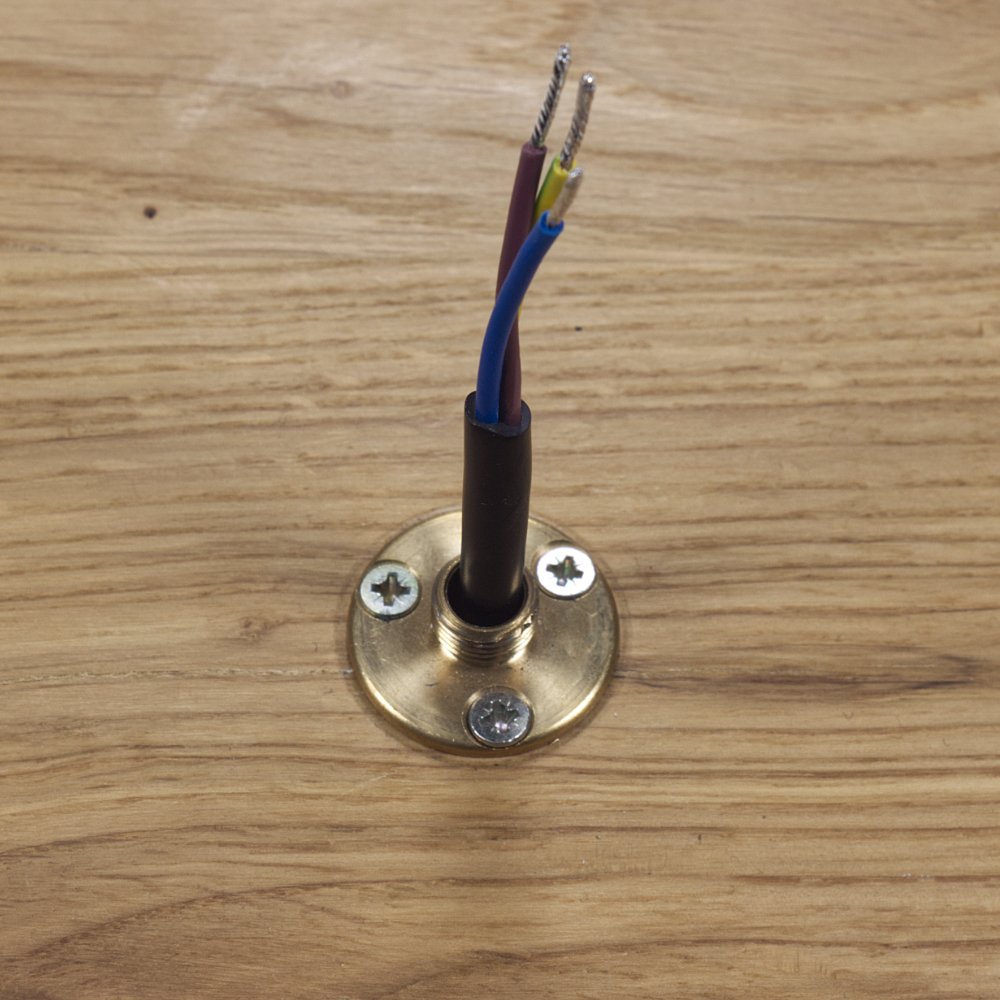

   Once you have fed the cable through your light fitting, place the backplate over the cable and fix it down onto your wooden lamp using the supplied screws, then place the cover over the top.

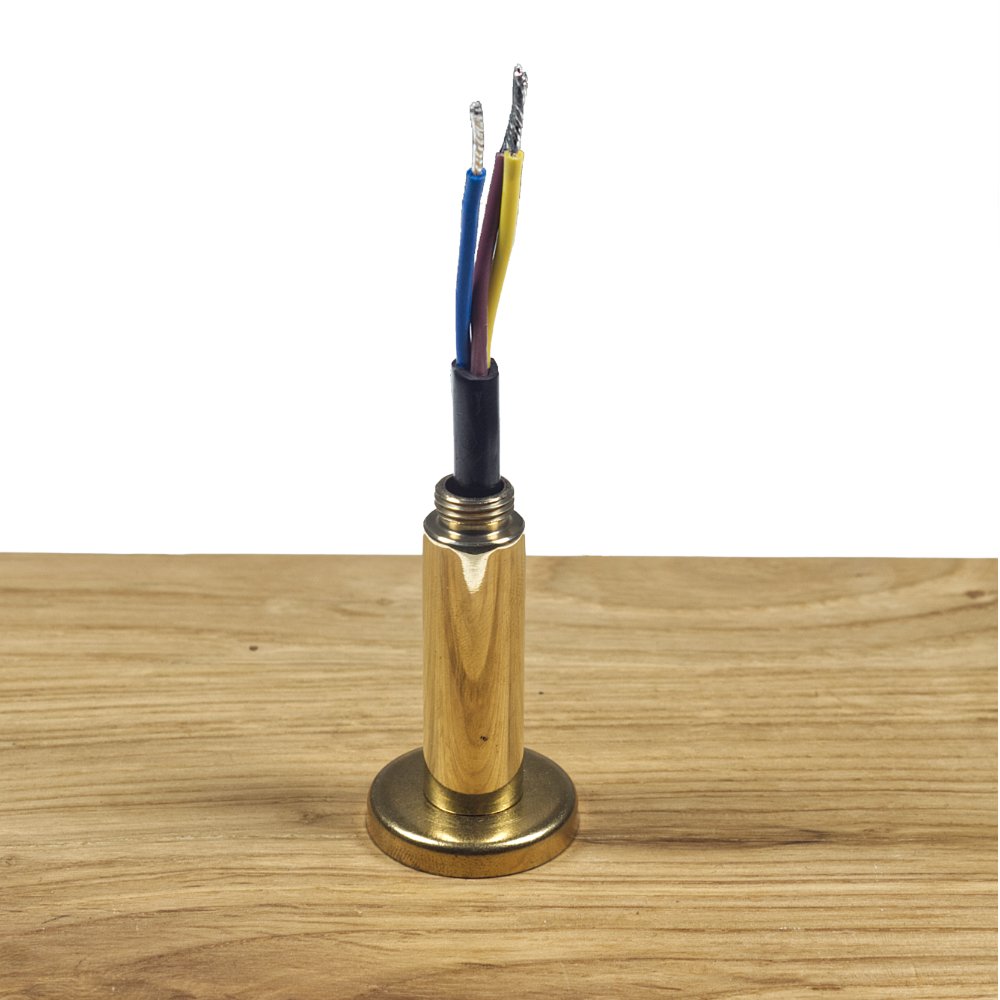

2. Take the extender (if purchased) and simply screw it on top of the thread on the backplate.



3. Separate the lampholder into its 3 pieces by unscrewing the shade ring and lock ring, leaving you with the cap, the connection unit and the skirt.

   Then take the cap of the lampholder and screw it onto the extender or onto the thread of the backplate if you have no extender.

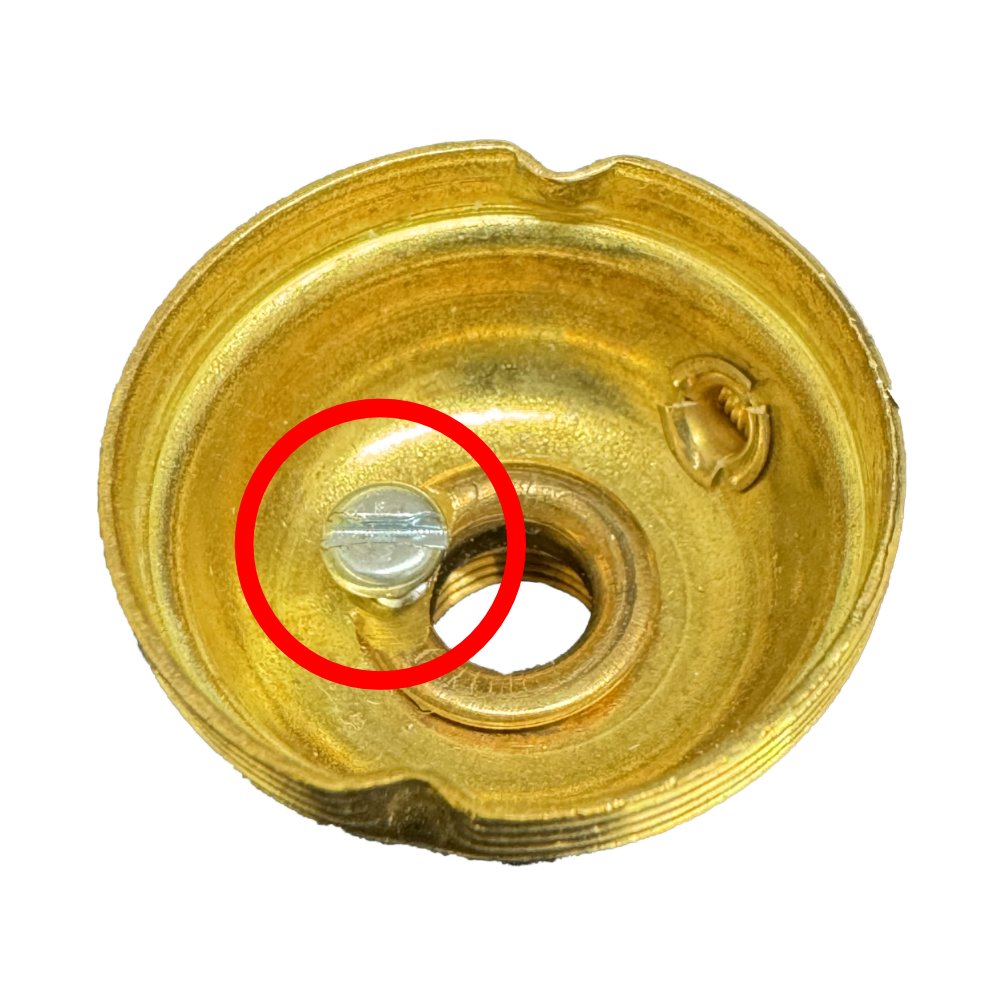

   Please Note: You may need  to loosen the locking screw on the inside of the lampholder as shown below.

   Once you have screwed the lampholder on you will need to tighten this screw up.

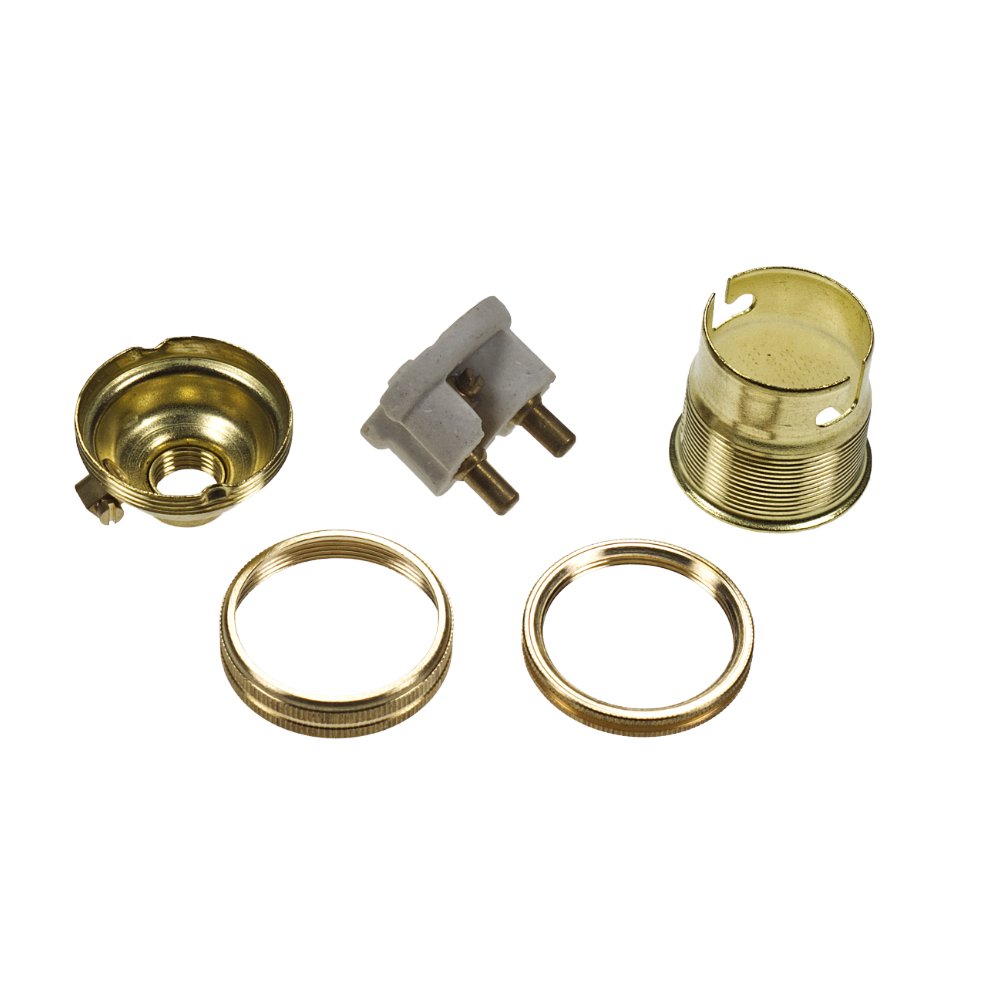

Separate the lampholder into the following parts:

1. Cap (Bottom Section)
2. Connection Unit
3. Skirt (Top Section)
4. Lock Ring
5. Shade Ring

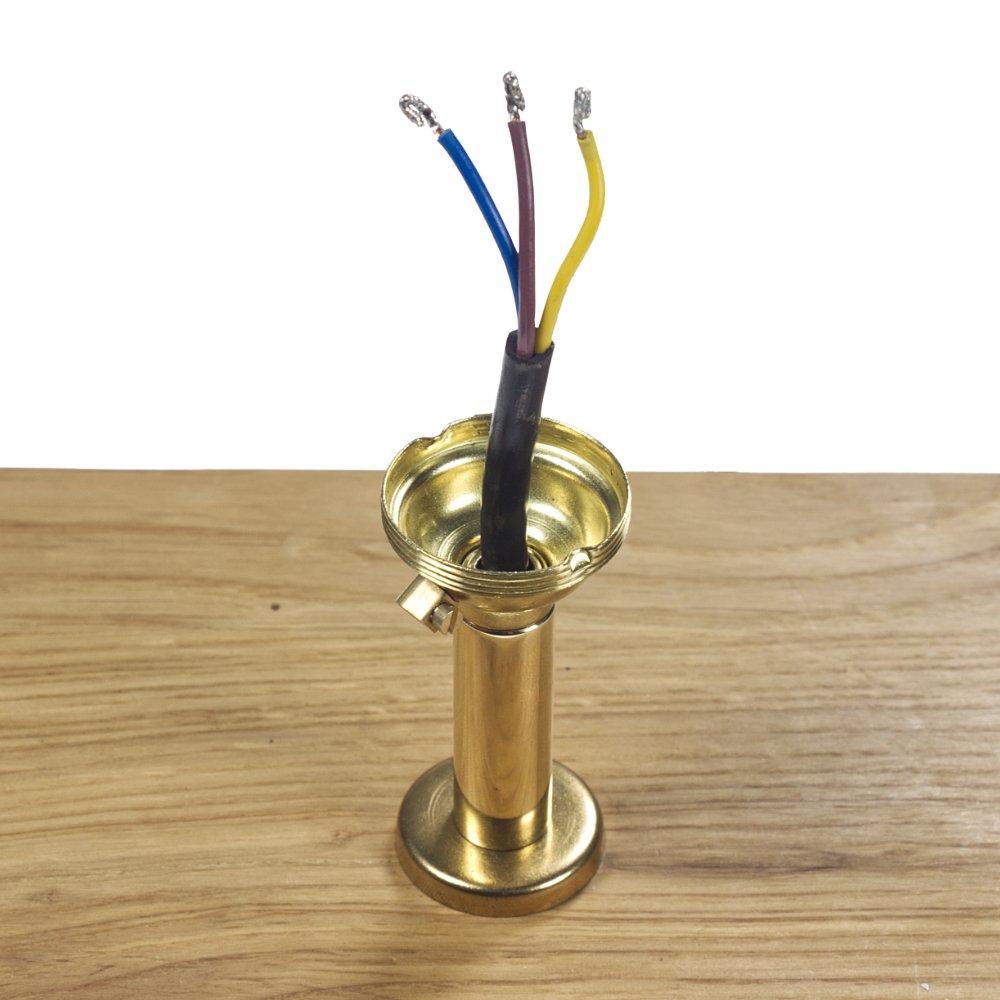

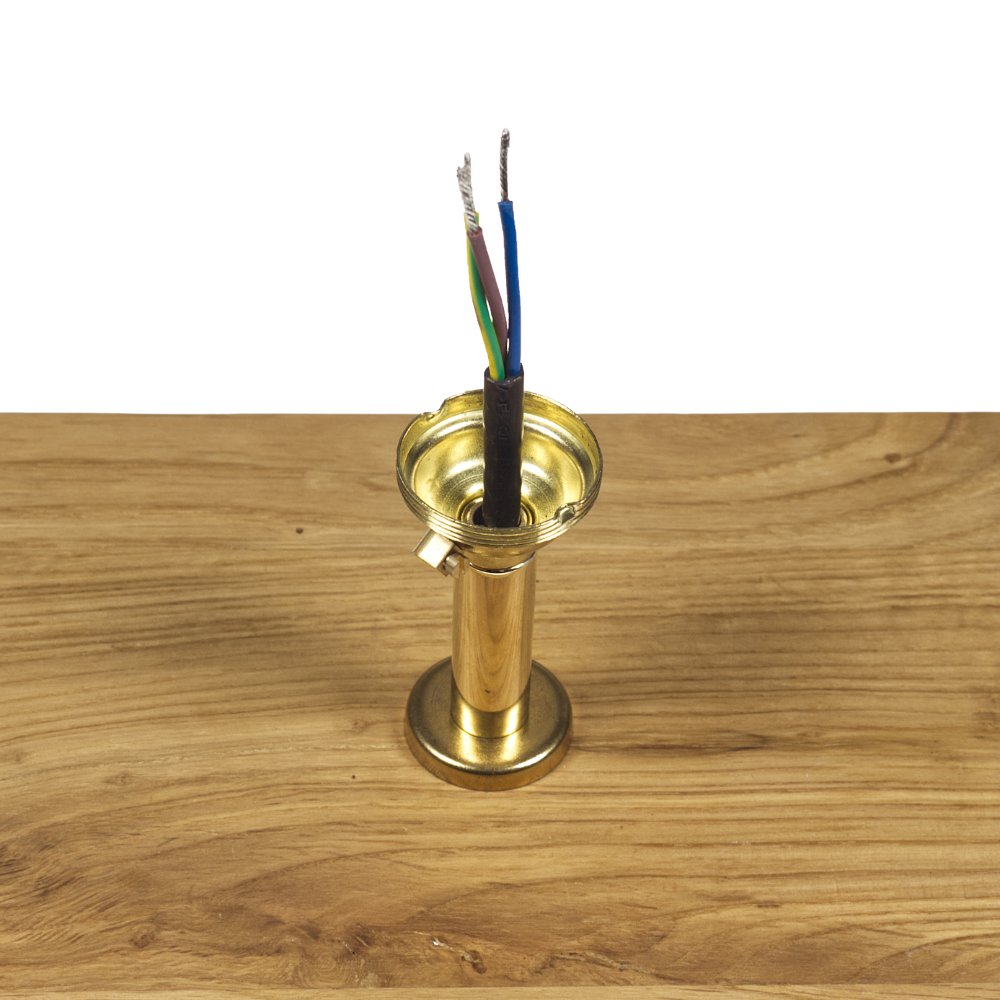

4. Using a pair of pliers, double over the ends of the cable.

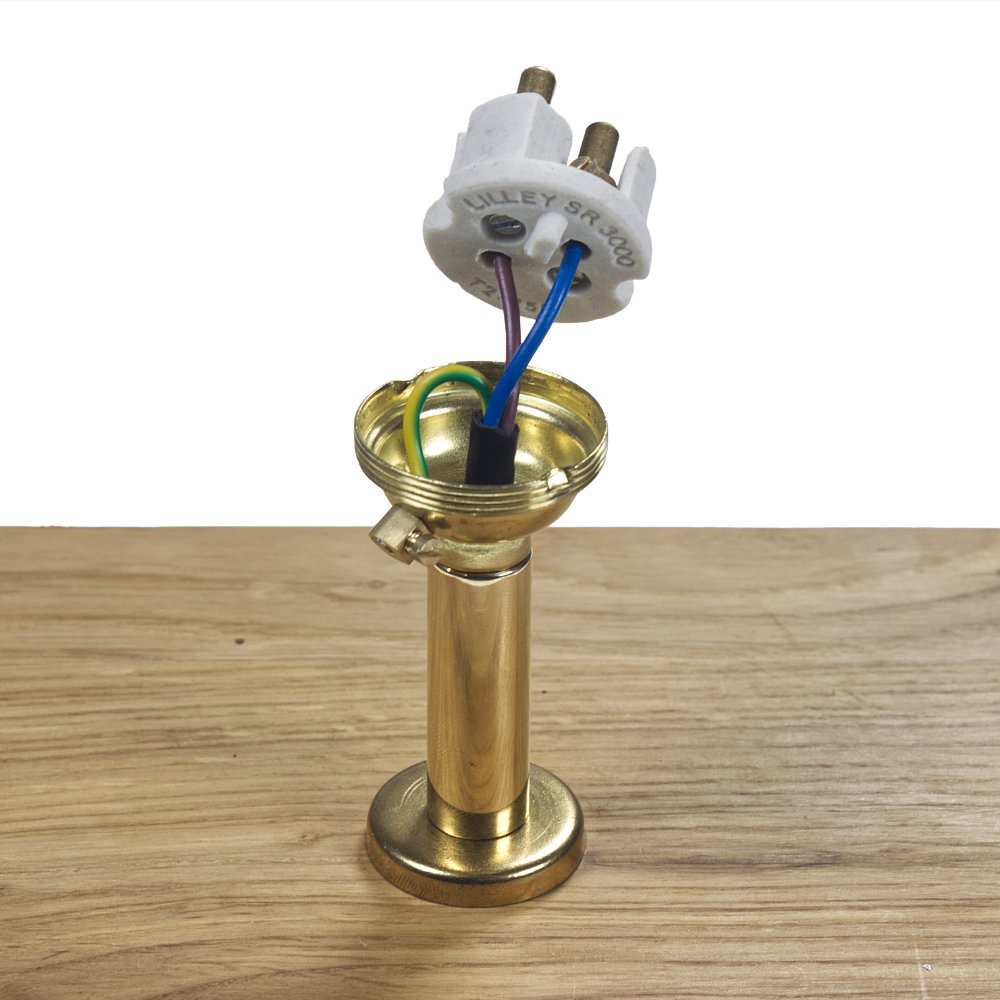

   Wire the cable into the connection unit of the lampholder, ensuring the Earth (Green/Yellow) connects to the block on the cap of the lampholder. It does not matter which way around the Live (Brown) and Neutral (Blue) go.

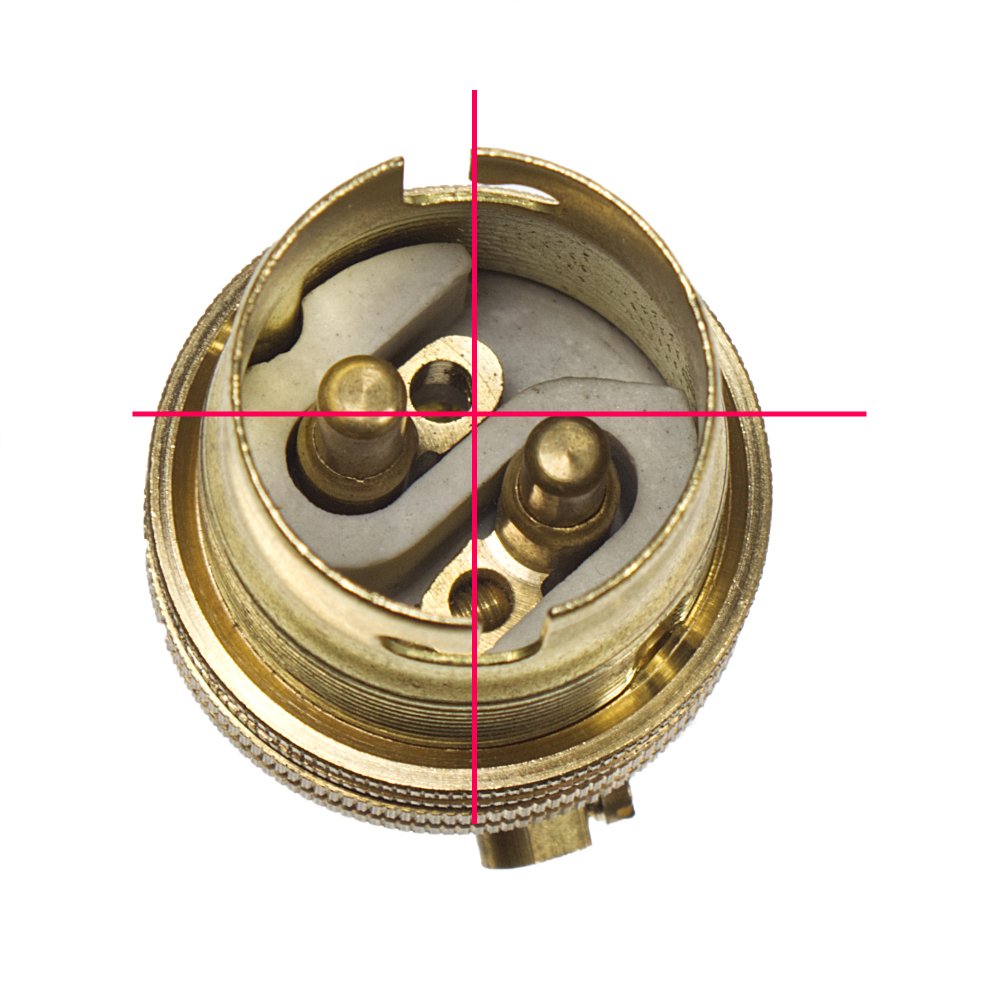

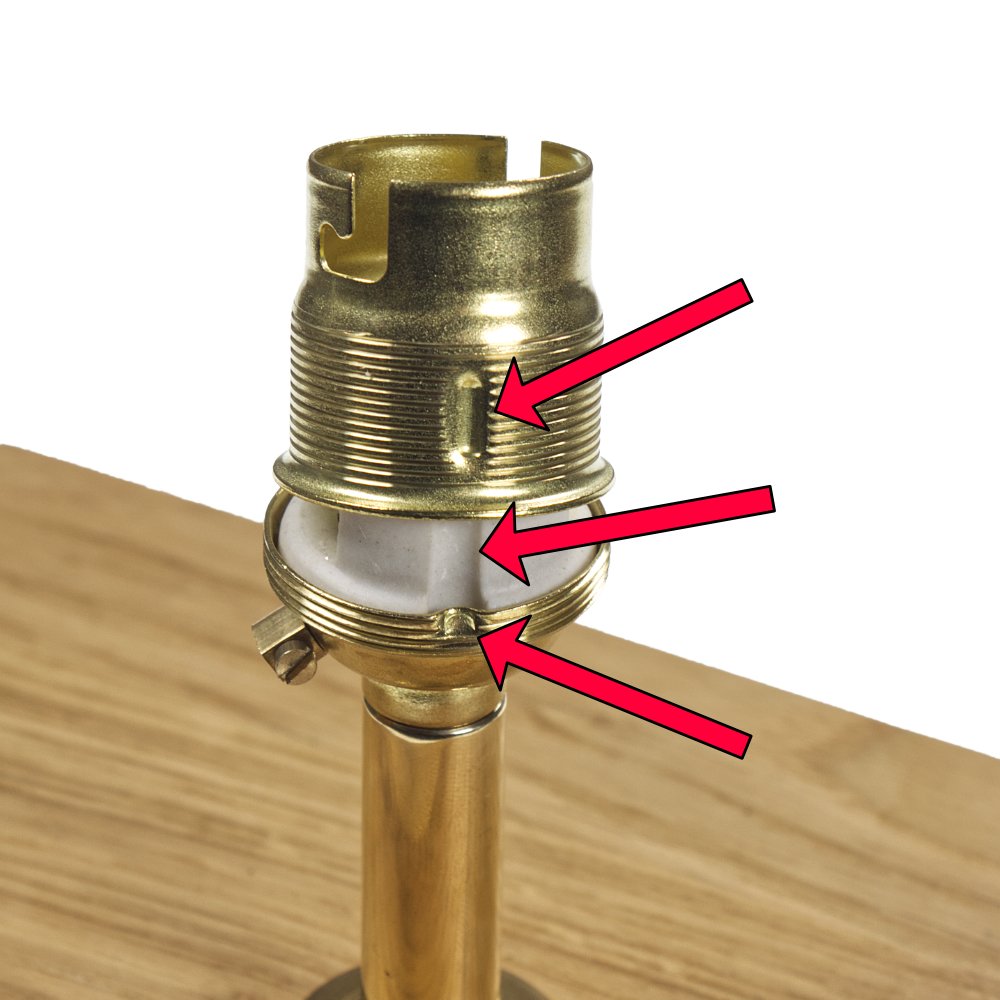

5. Carefully push the connection unit into the cap of the lampholder and place the top section (the skirt) onto the lampholder, ensuring the alignment of the lampholder is correct (as shown below).

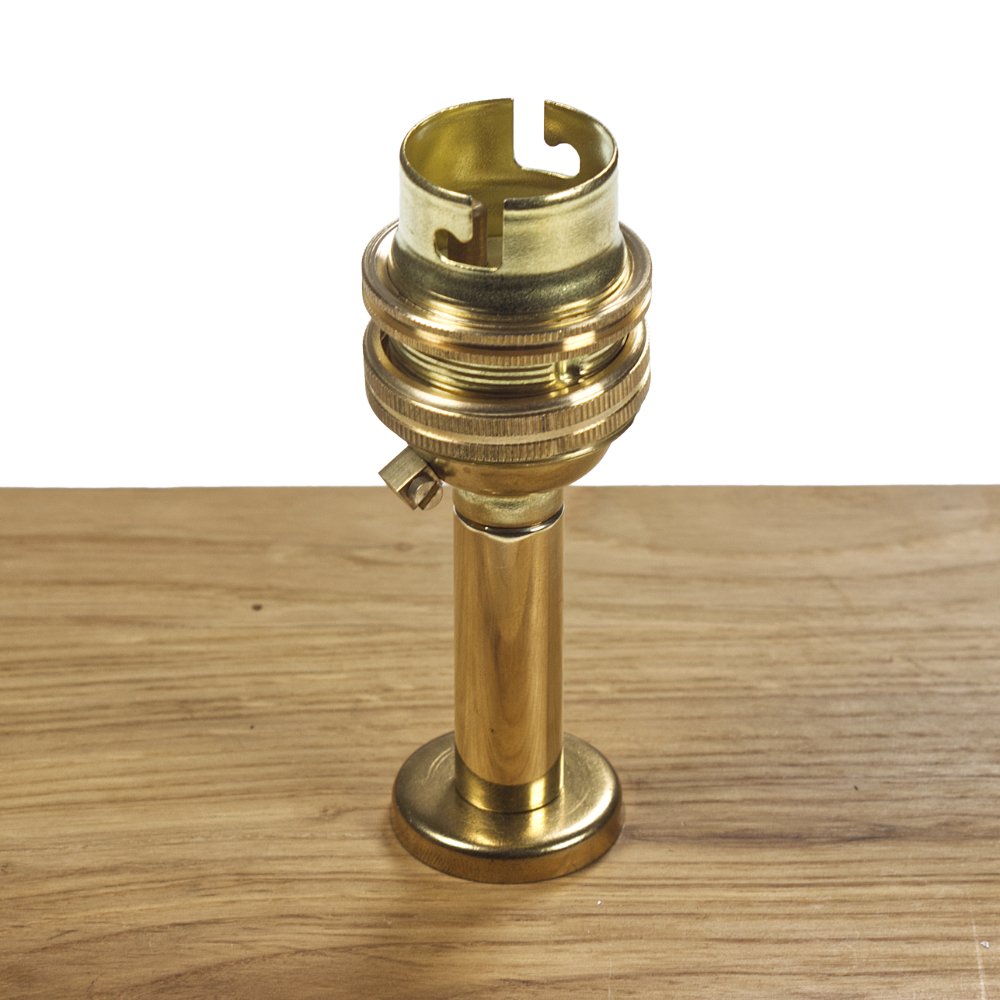

   Finally, screw the lock ring and shade ring onto the lampholder.

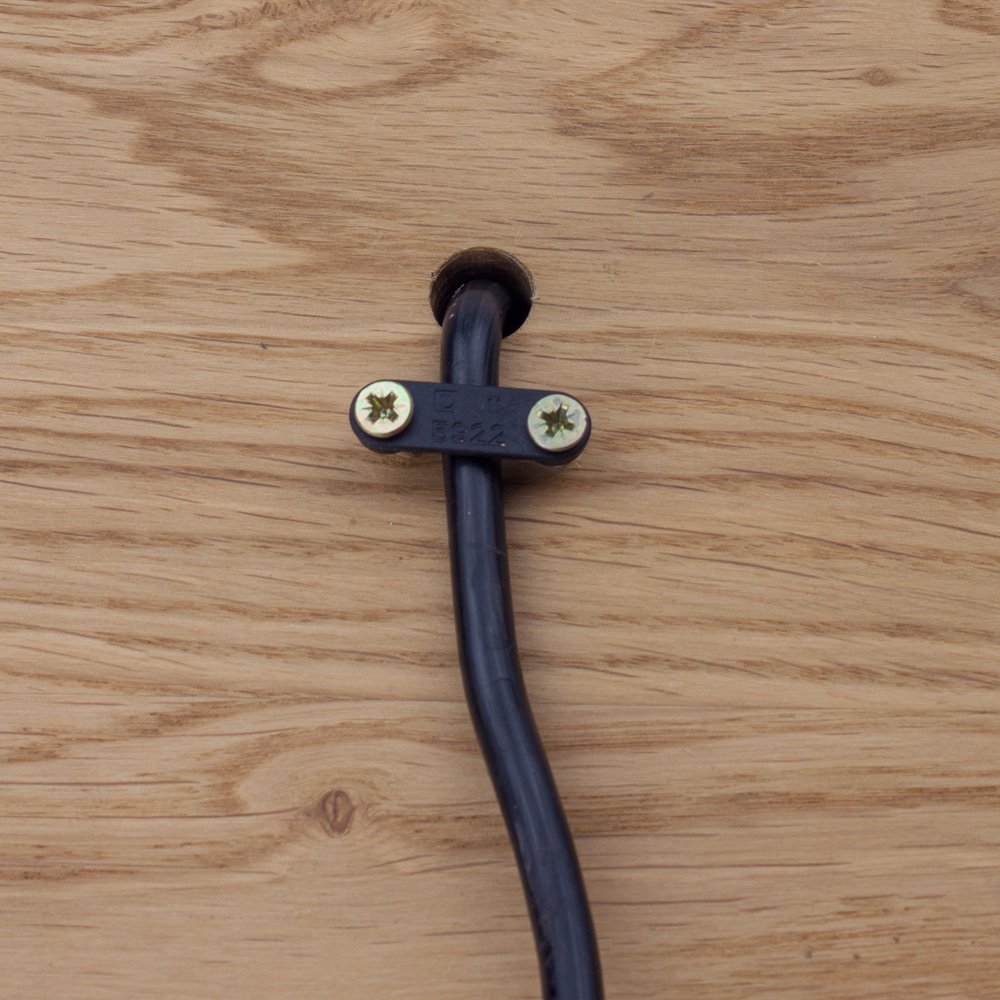

6. Ensure you use the cord grip on the bottom of the light fitting by putting it across the cable and using the screws supplied to fix it into position, this will ensure the cable cannot be pulled out by accident.
