Installing Arditi Brand Metal E27 Lampholder’s

This is a quick guide to show you how to install the Arditi Edison Screw ES | E27 Metal Lampholders.

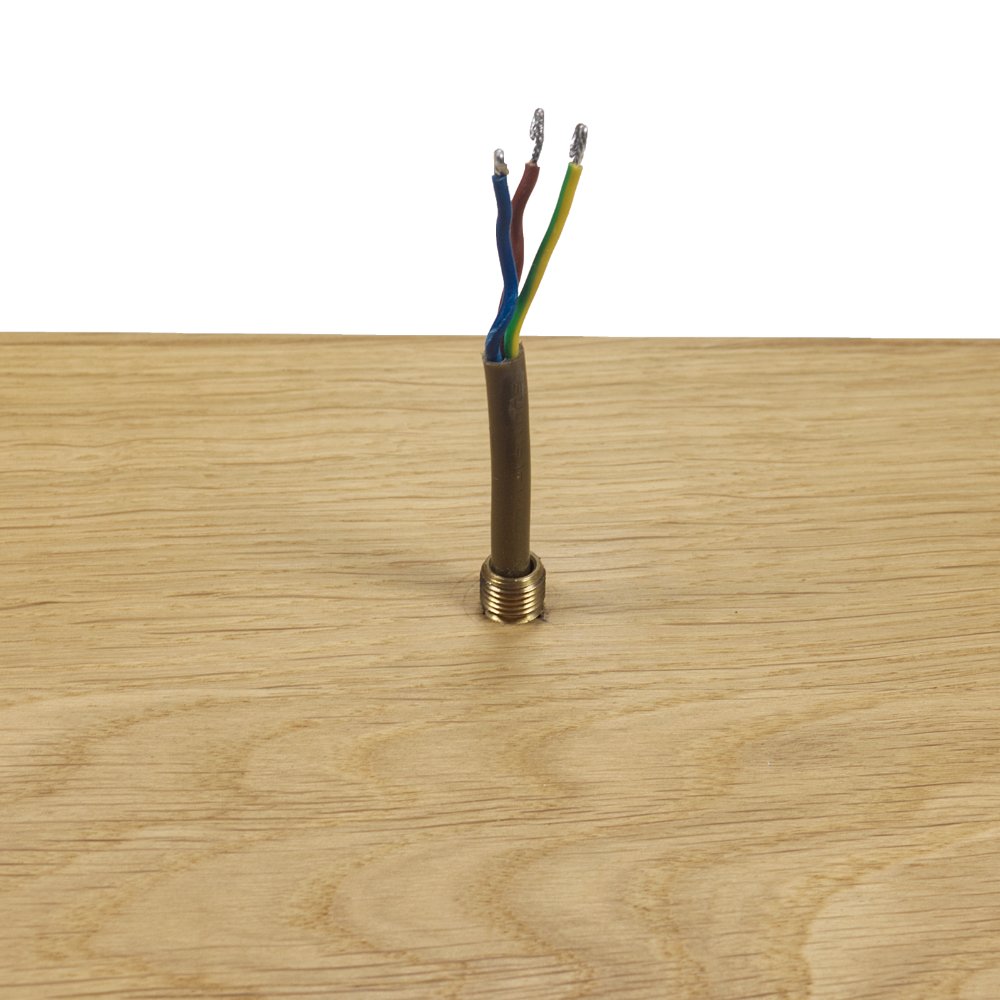

  1. Ensure the cable is sticking out the top as required.

    Installing Arditi Brand Metal E27 Lampholder’s

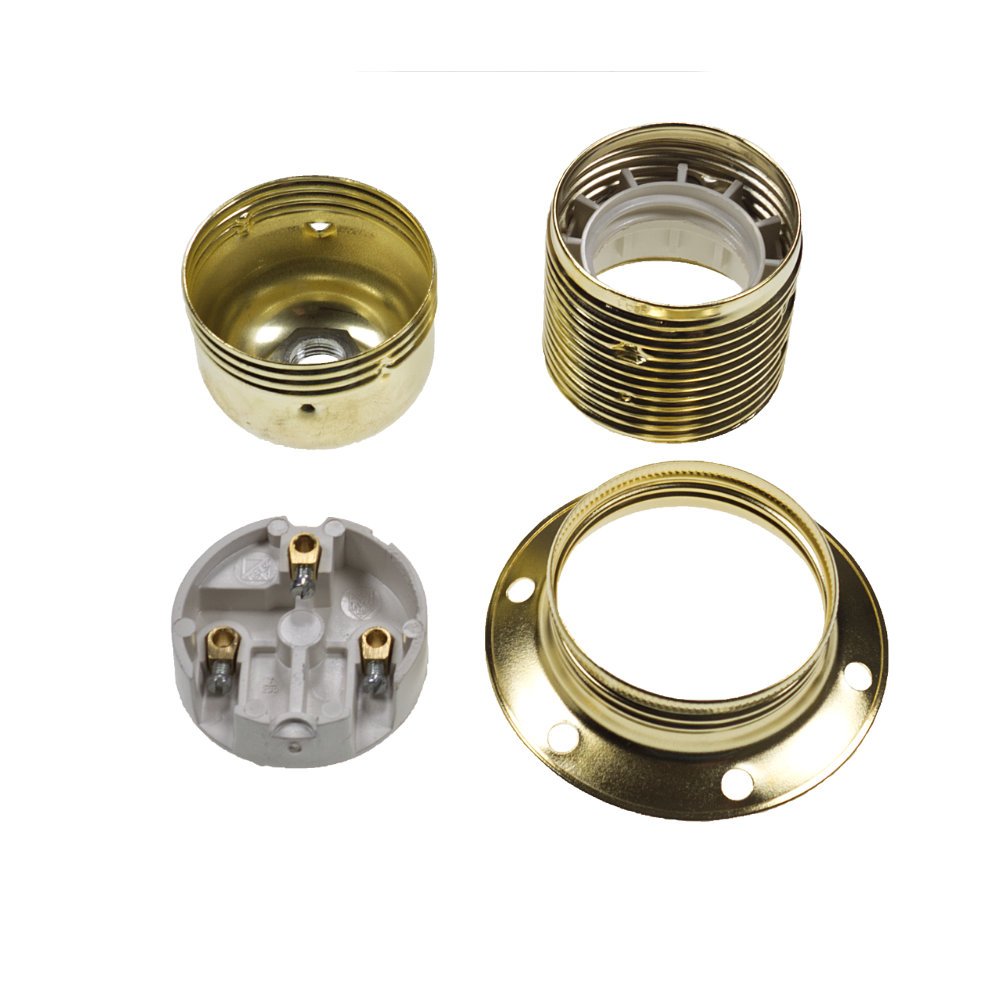

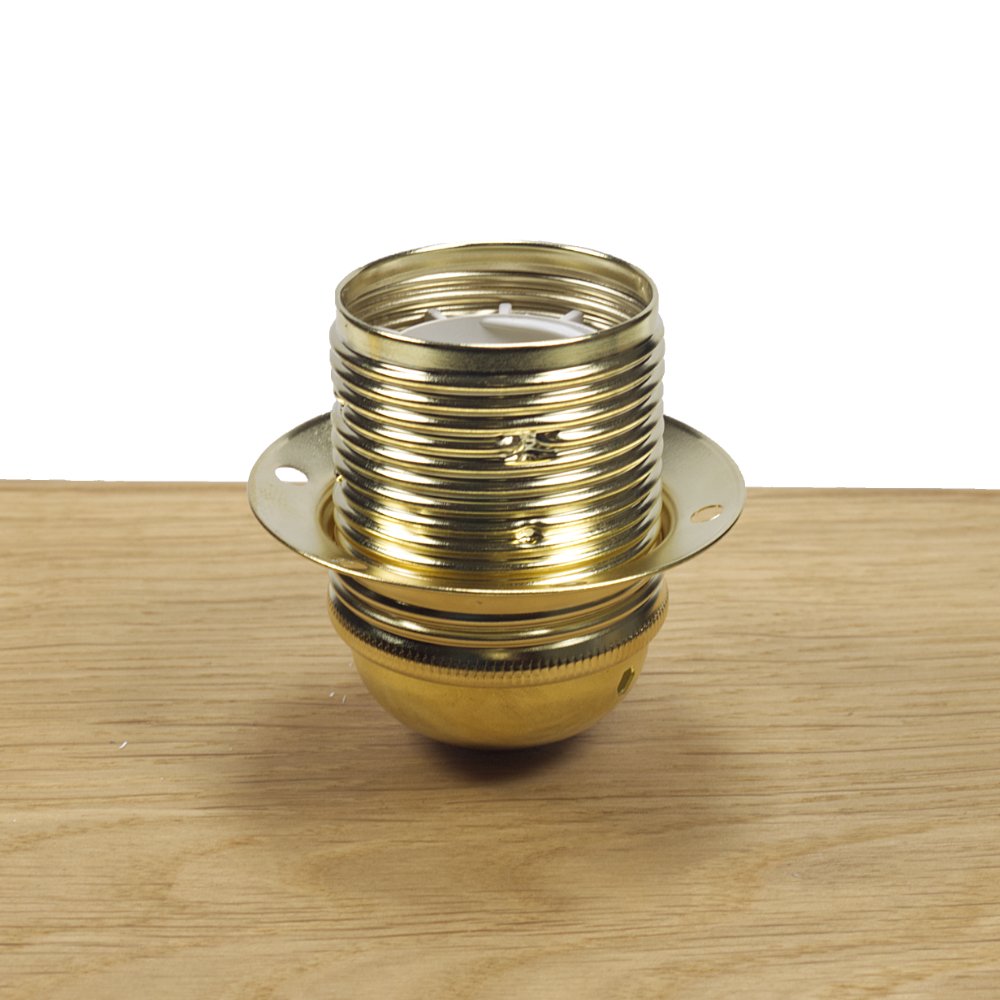

  2. Separate the lampholder into its 4 key components.

    Please see below the breakdown of the lampholder.

    Installing Arditi Brand Metal E27 Lampholder’s – picture 2
    1. Cap
    2. Skirt
    3. Insert (Connection Unit)
    4. Shade Ring

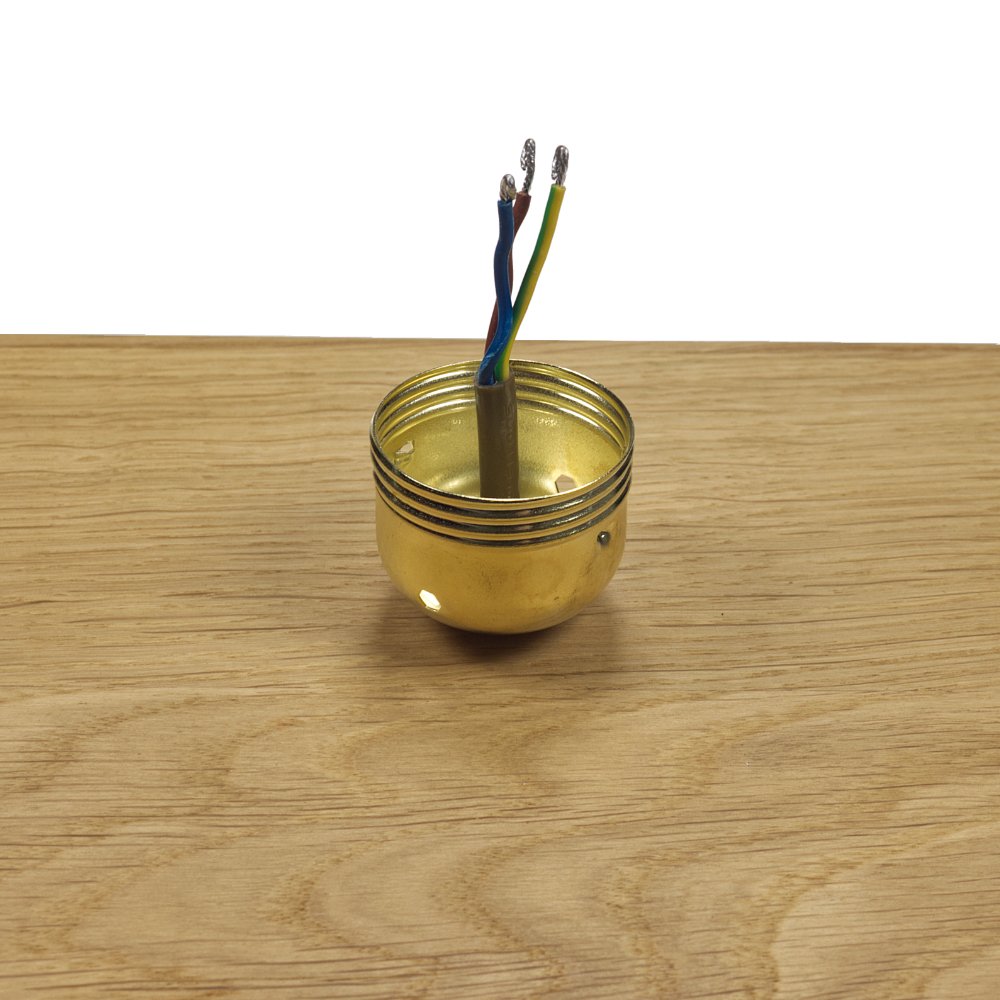

  3. Take the Cap (1) of the lampholder, slide it over the cable and screw it onto the fixing point.

    Installing Arditi Brand Metal E27 Lampholder’s – picture 3

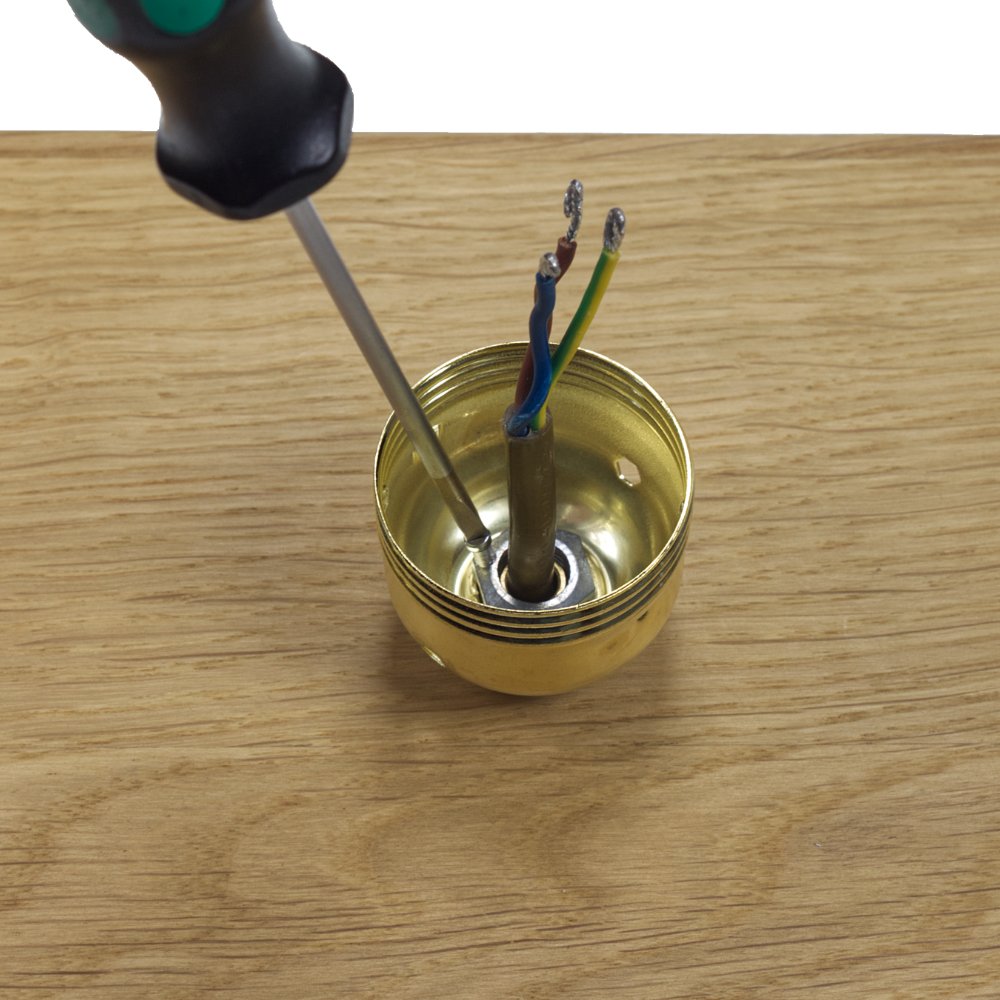

  4. Once the cap of the lampholder is securely screwed into place, tighten the locking screw on the inside of the cap using a suitable screwdriver - this locks the lampholder onto the fixing point, preventing it from being accidentally loosened or unscrewed when replacing the light bulb.

    Installing Arditi Brand Metal E27 Lampholder’s – picture 4

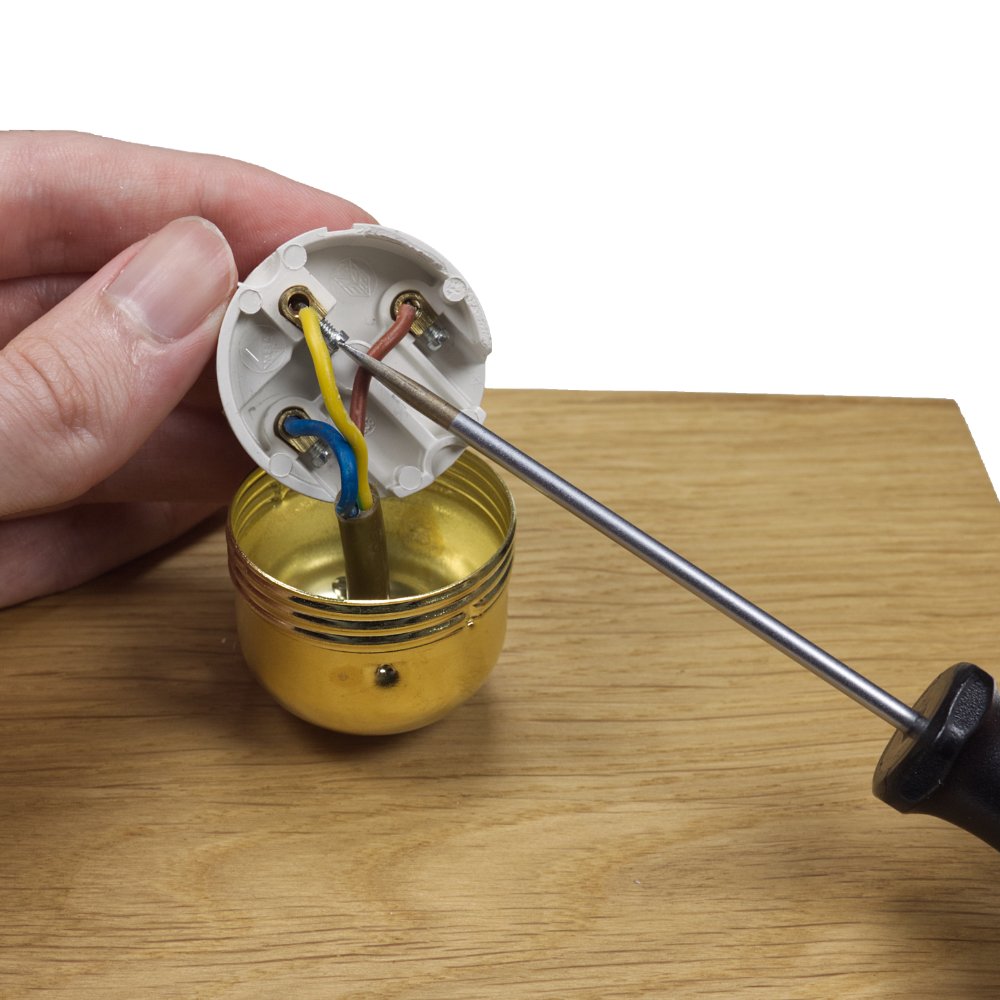

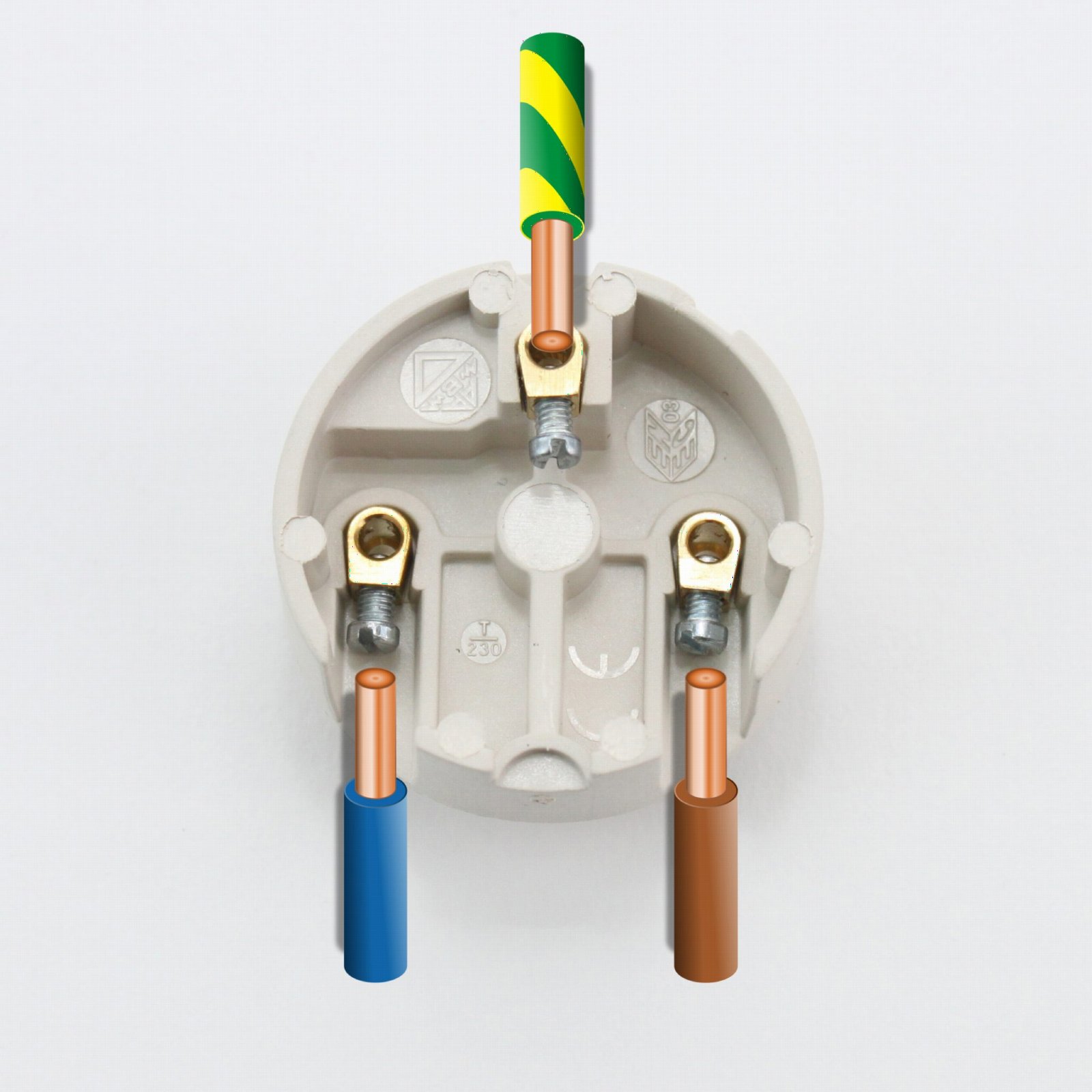

  5. Take the ceramic connection unit and wire the cable in, as shown below.

    Installing Arditi Brand Metal E27 Lampholder’s – picture 5
    Installing Arditi Brand Metal E27 Lampholder’s – picture 6

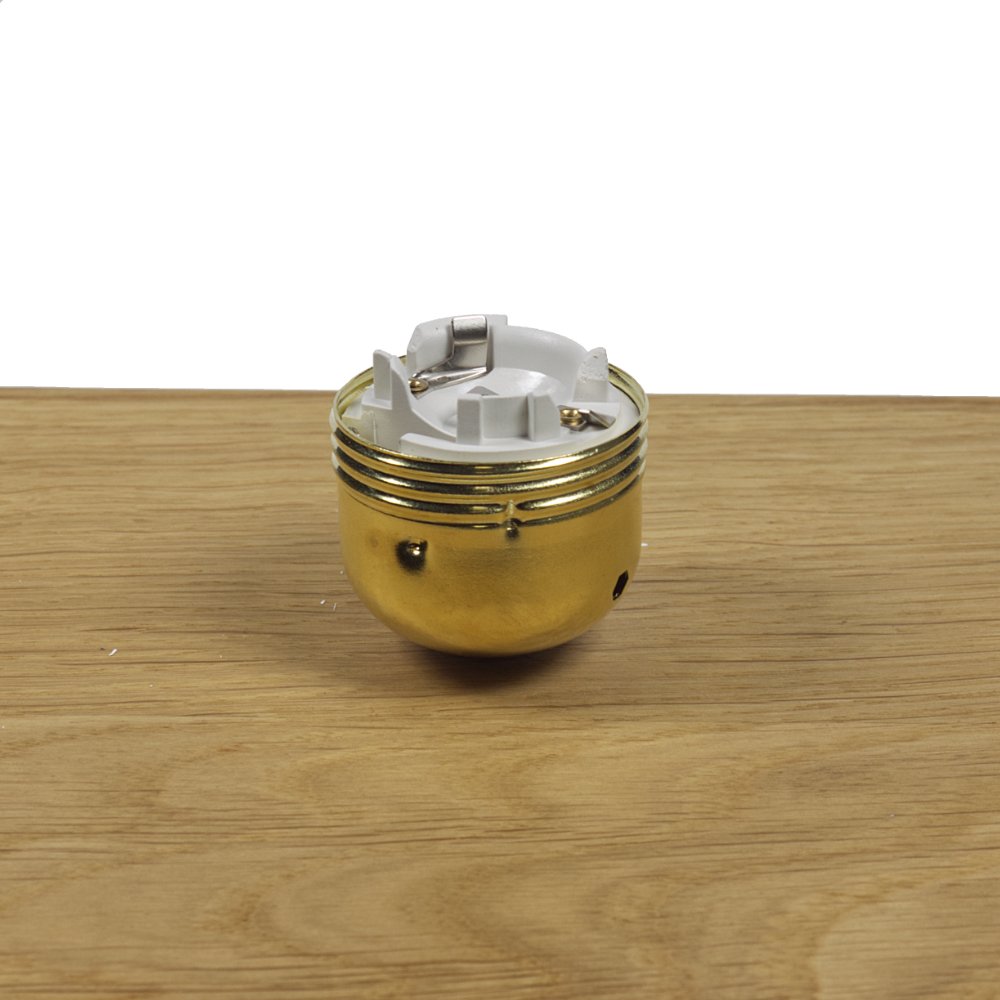

  6. Once wired, push the ceramic connection unit into the bottom section of the lampholder. Note how far down the connection unit goes - so it's flush around the edge. Then place the skirt on top, making sure everything is aligned in order for the lampholder to screw together correctly, see image below.
    Installing Arditi Brand Metal E27 Lampholder’s – picture 7
    Installing Arditi Brand Metal E27 Lampholder’s – picture 8

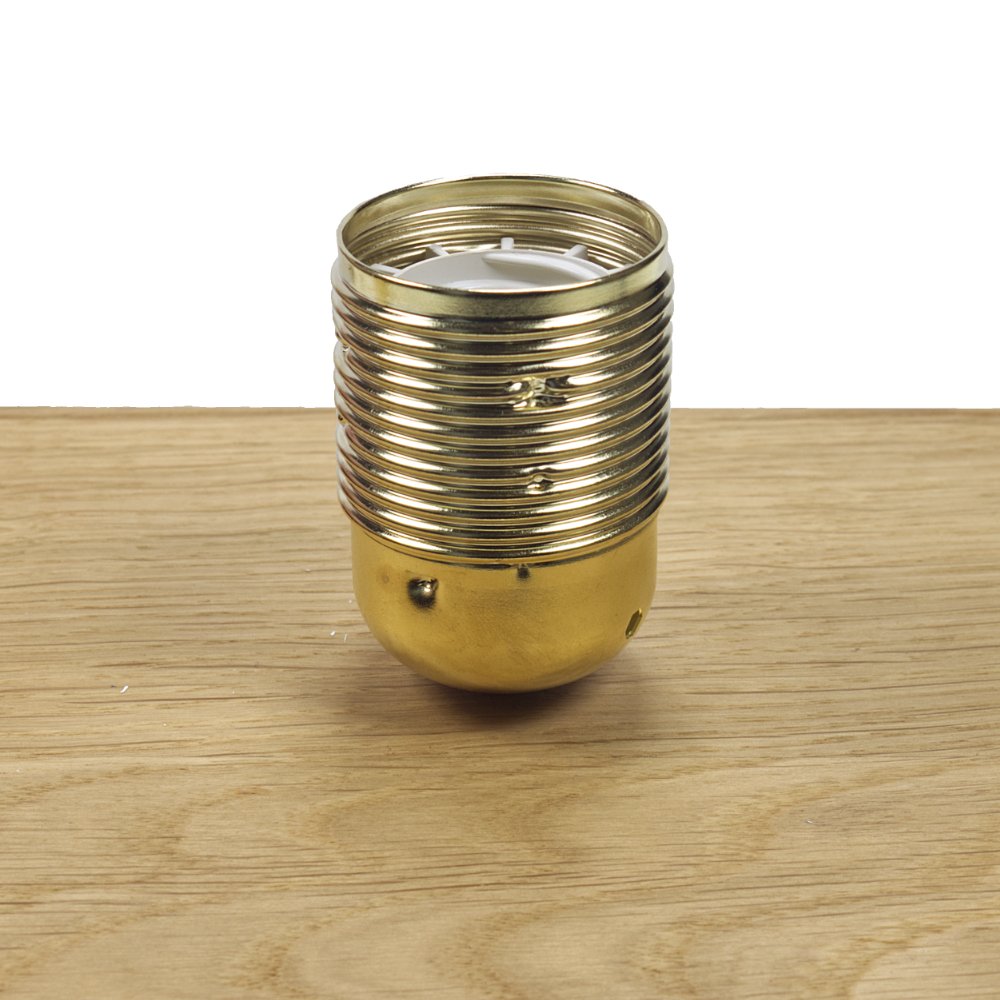

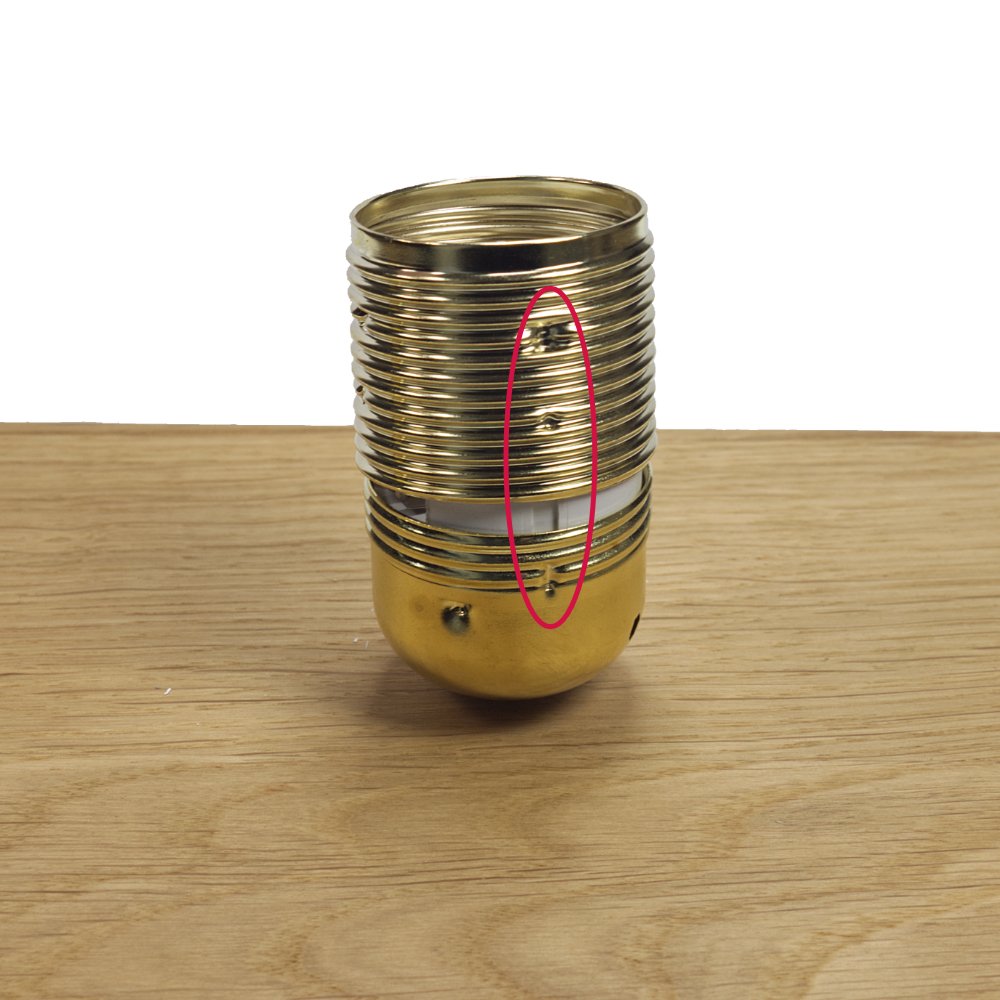

  7. Take the skirt section of the lampholder and screw it onto the bottom part, note the clicking sound when tightening up - this is the locking device. More information can be found below this article regarding the locking device.
    Installing Arditi Brand Metal E27 Lampholder’s – picture 9

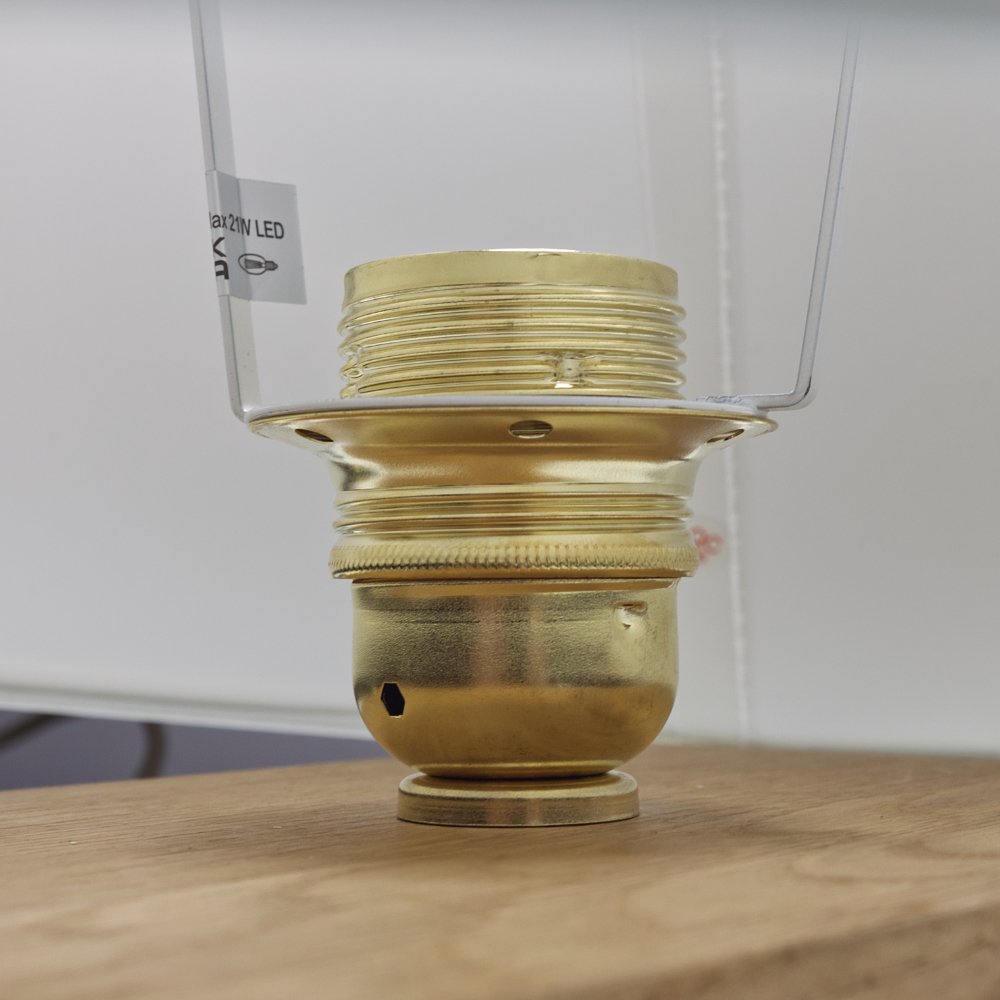

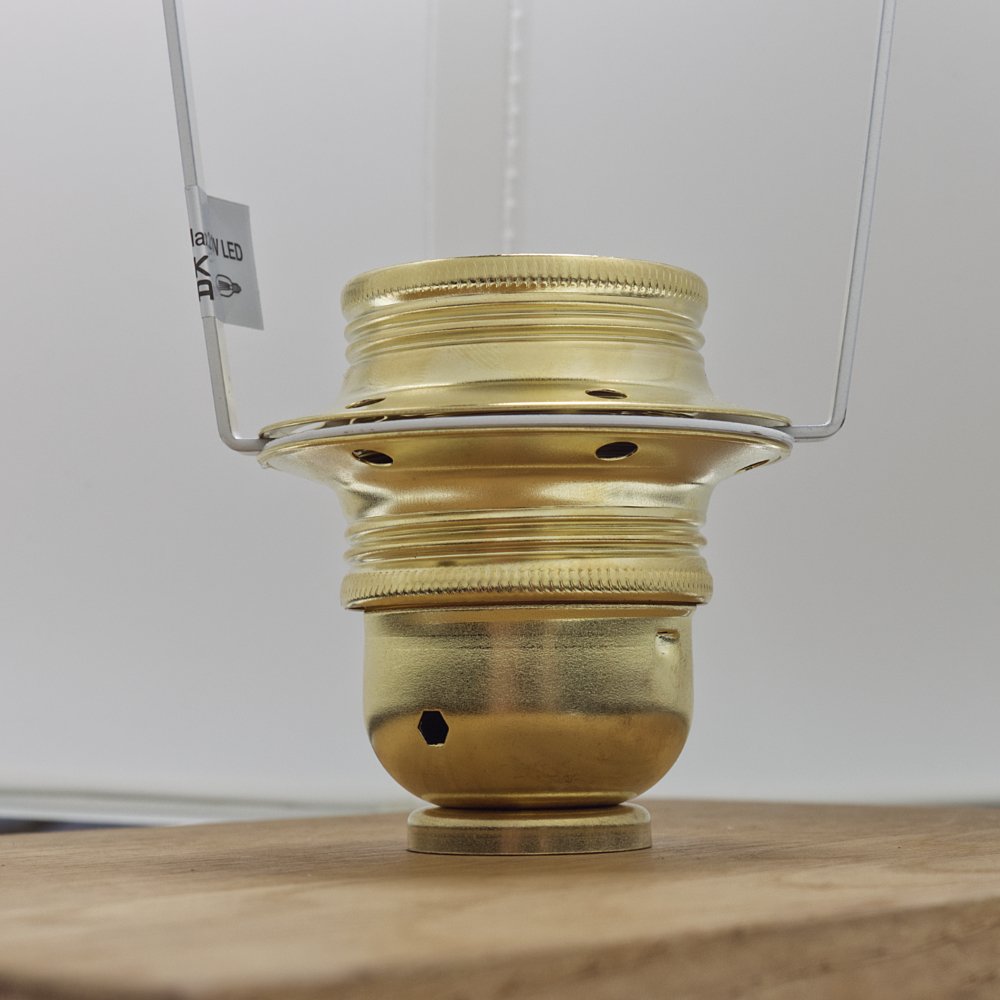

  8. Take one of the 2 shade rings and screw in onto the skirt. Then take your shade and clamp it into place by placing it between the first shade ring and then by screwing the second shade ring on top.

    Installing Arditi Brand Metal E27 Lampholder’s – picture 10
    Installing Arditi Brand Metal E27 Lampholder’s – picture 11
    Installing Arditi Brand Metal E27 Lampholder’s – picture 12

If you need to remove this lampholder then please view our "how to unlock your lampholder" guide.
