How to install our E14 lampholder with L bracket

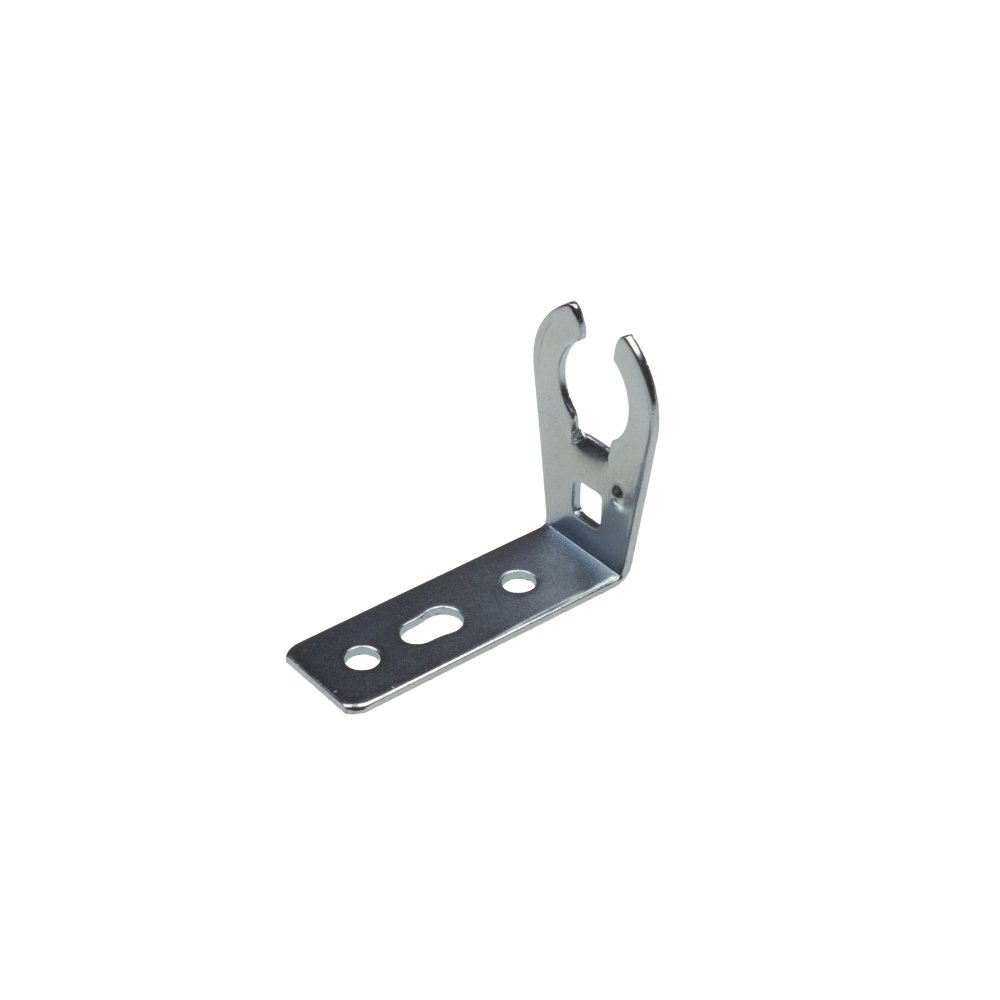

Install the L bracket to your wall or item.

We have not fixed it in the image as this is for reference only.

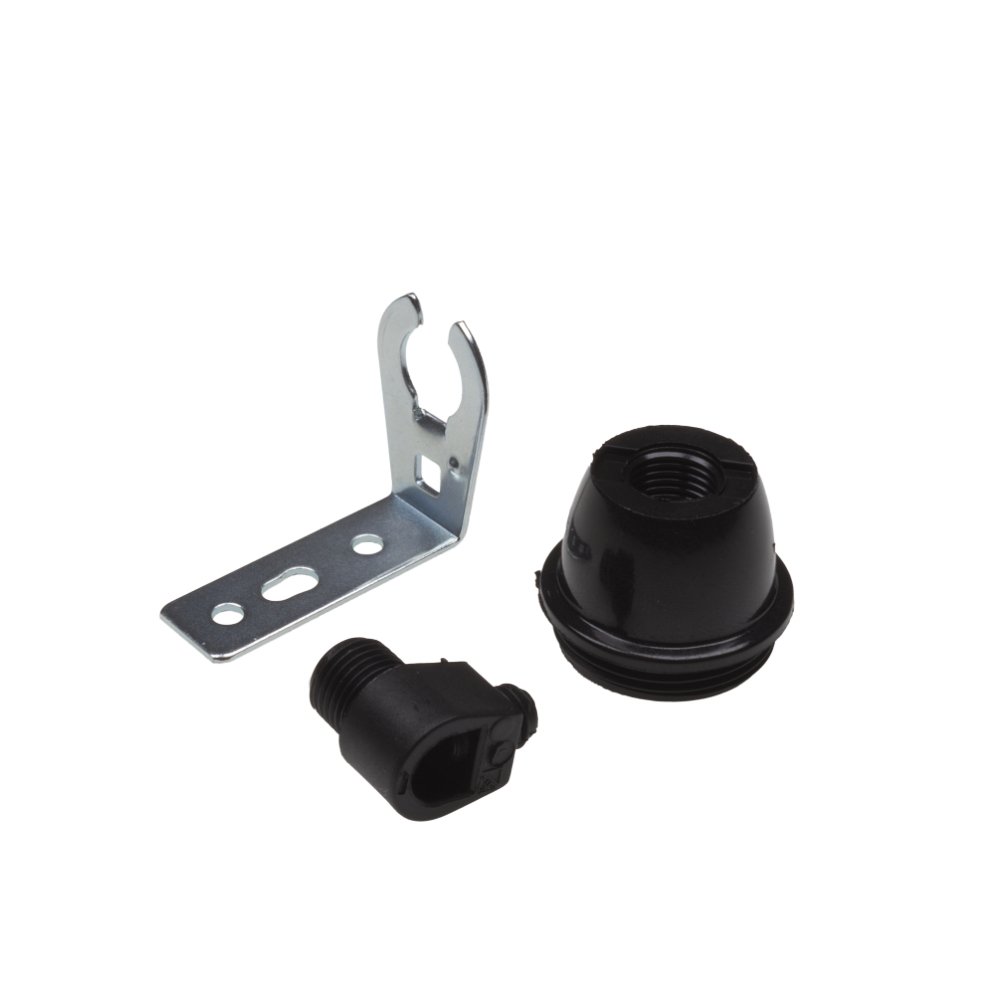

Separate the lampholder and take the cap (bottom section) and the cord grip.

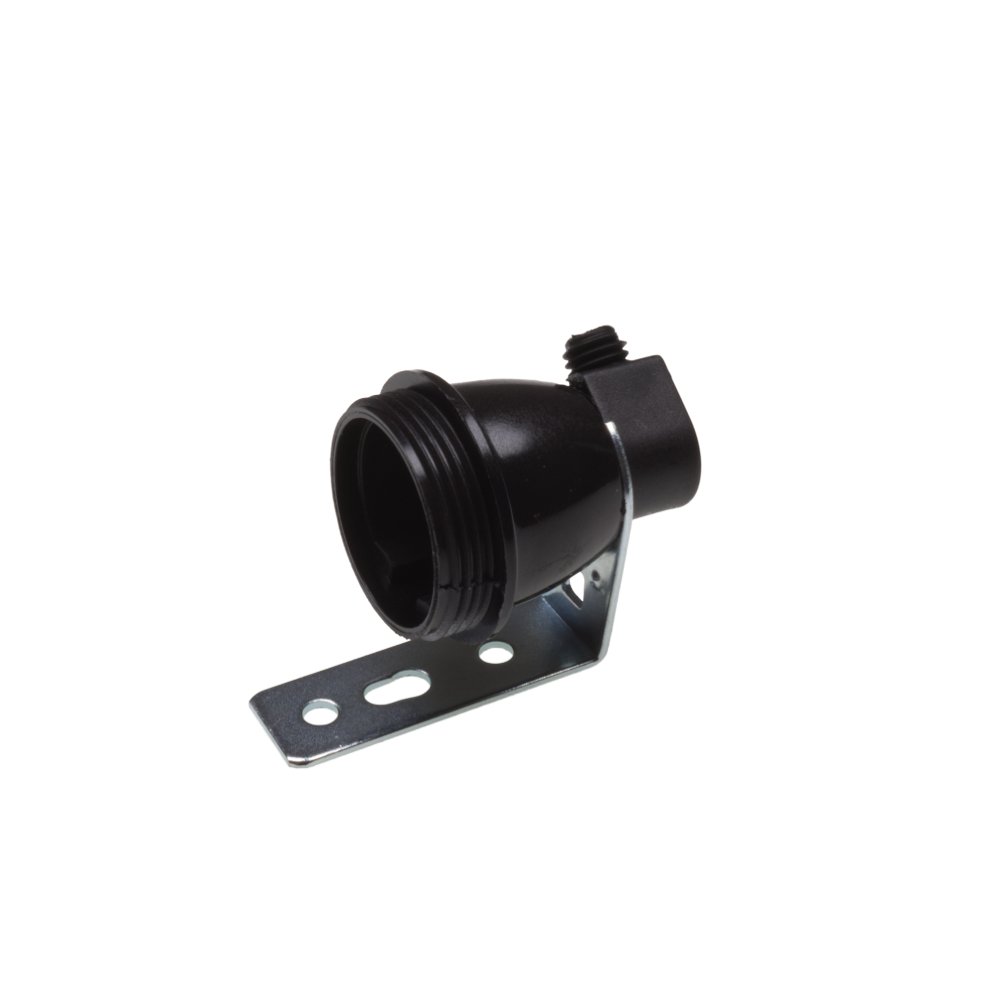

Place the bracket over the male thread of the cord grip and then screw the cord grip into the cap of the lampholder.

Note the bracket can be installed either way around, with the bracket as shown in the image or the bracket pointing the other way.

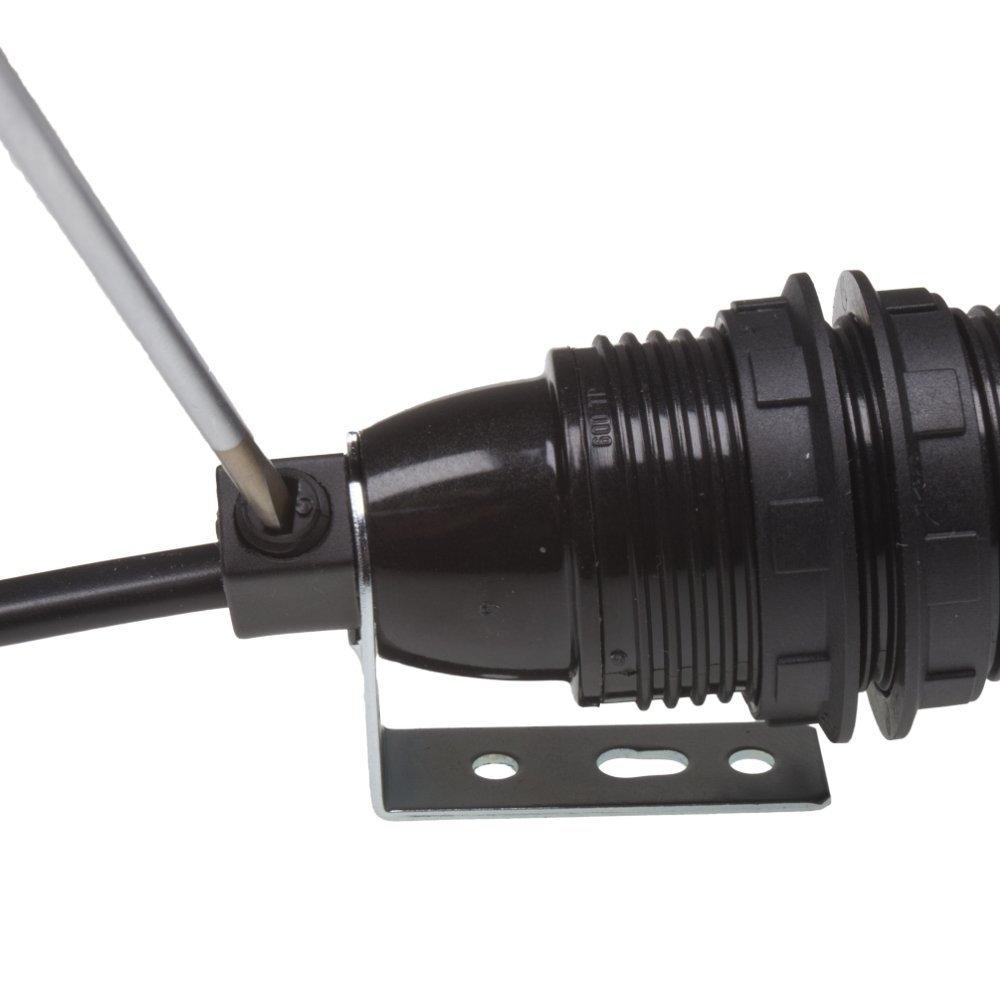

Once you have successfully wired the lampholder tighten the grub screw up on the cord grip to prevent the cable from being pulled out.
