BC | B22 | Bayonet Cap Nickel Angled Batten Lampholder
This BC | B22 | Bayonet Cap Nickel Angled Batten Lampholder is the perfect solution for building your very own Hollywood style vanity inspired mirror unit, this batten lampholder can be attached directly to a base and is also a fabulous lampholder for creating lighting around the front of stages.
The lampholder comes in four parts. The cap includes the batten base, which attaches to your fitting, and also contains an earth block for safely earthing the lampholder. The centre connection unit is where the live (brown) and neutral (blue) wires are connected. The skirt then screws over the connection unit and onto the cap to enclose the wiring. Finally, there are two rings: the locking ring (thicker), which secures the base and skirt together, and the shade ring (thinner), which allows you to clamp a lampshade onto the lampholder.
Important Information Regarding This Lampholder
Please note that there is not a lot of room in the base of this lampholder for connections, you may need to make a hole in the wall or do the connections in a different location.
Please seek professional advice if you are unsure.
Due to this lampholder being metal it will require a 3 Core cable to Earth the lampholder.
If you need additional information regarding this product, then scroll through the additional product images or visit the 'Help Centre' on our website for info on wiring, dimensions, etc.
This is a BC | B22 (Bayonet Cap) lampholder with an angled batten base. If you are searching for a traditional batten lampholder, then we sell an equivalent lampholder but with a 52mm flat base. Click on the image below or search the following SKU number: 4662442 in the search bar at the top of the website.
Specification:
Available in the Following Colour Finishes:
This BC | B22 | Bayonet Cap Nickel Angled Batten Lampholder is the perfect solution for building your very own Hollywood style vanity inspired mirror unit, this batten lampholder can be attached directly to a base and is also a fabulous lampholder for creating lighting around the front of stages.
The lampholder comes in four parts. The cap includes the batten base, which attaches to your fitting, and also contains an earth block for safely earthing the lampholder. The centre connection unit is where the live (brown) and neutral (blue) wires are connected. The skirt then screws over the connection unit and onto the cap to enclose the wiring. Finally, there are two rings: the locking ring (thicker), which secures the base and skirt together, and the shade ring (thinner), which allows you to clamp a lampshade onto the lampholder.
S Lilley - UK Made Lampholder
The manufacturer of the BC | B22 | Bayonet Cap Nickel Angled Batten Lampholder with 52mm Base is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
Please note that there is not a lot of room in the base of this lampholder for connections, you may need to make a hole in the wall or do the connections in a different location.
Please seek professional advice if you are unsure.
Due to this lampholder being metal it will require a 3 Core cable to Earth the lampholder.
If you need additional information regarding this product, then scroll through the additional product images or visit the 'Help Centre' on our website for info on wiring, dimensions, etc.
This is a BC | B22 (Bayonet Cap) lampholder with an angled batten base. If you are searching for a traditional batten lampholder, then we sell an equivalent lampholder but with a 52mm flat base. Click on the image below or search the following SKU number: 4662442 in the search bar at the top of the website.
Specification:
- Lamp Style: BC | B22 | Bayonet Cap
- Height (when installed): 69mm
- Lampholder Diameter: 26mm
- Shade Ring Diameter: 32mm
- Plate Diameter: 47.5mm
- Distance Between Fixing Holes: 40mm
- Can Install Shade: Yes
- Material: Brass
- Finish: Nickel Plated

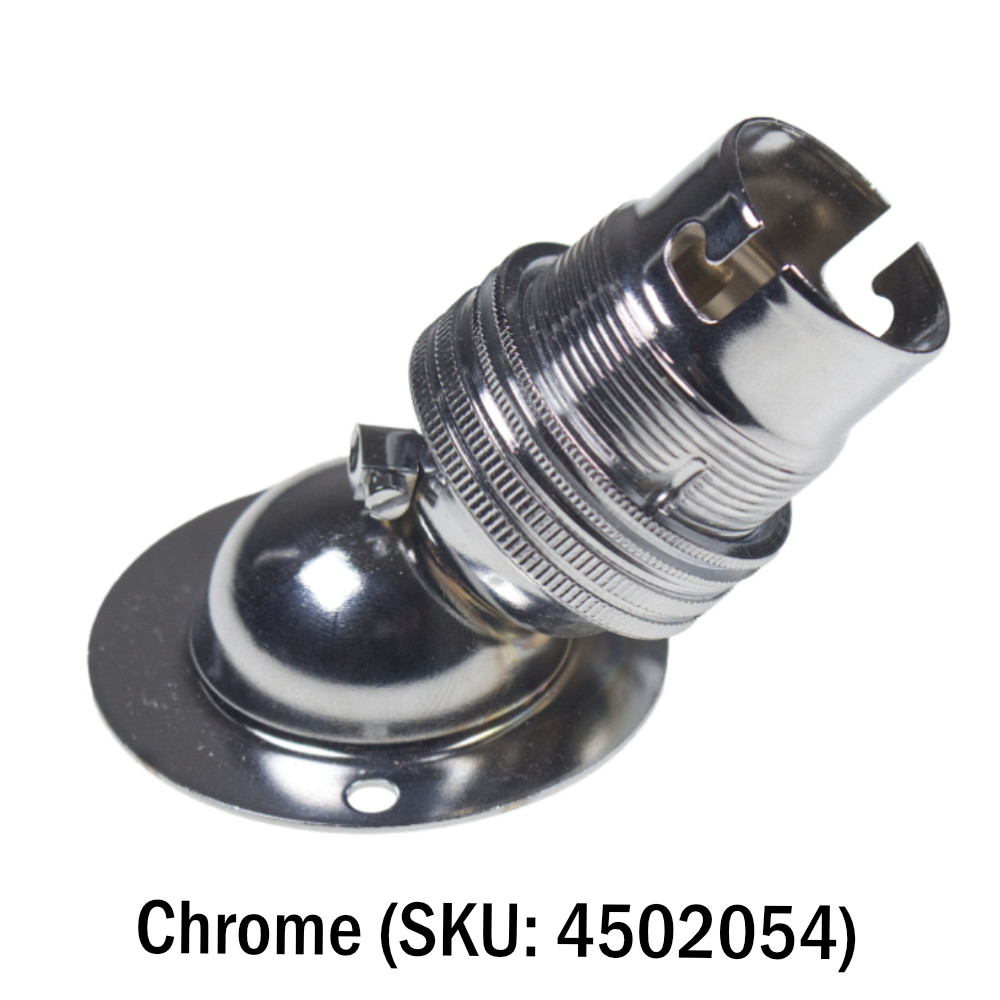

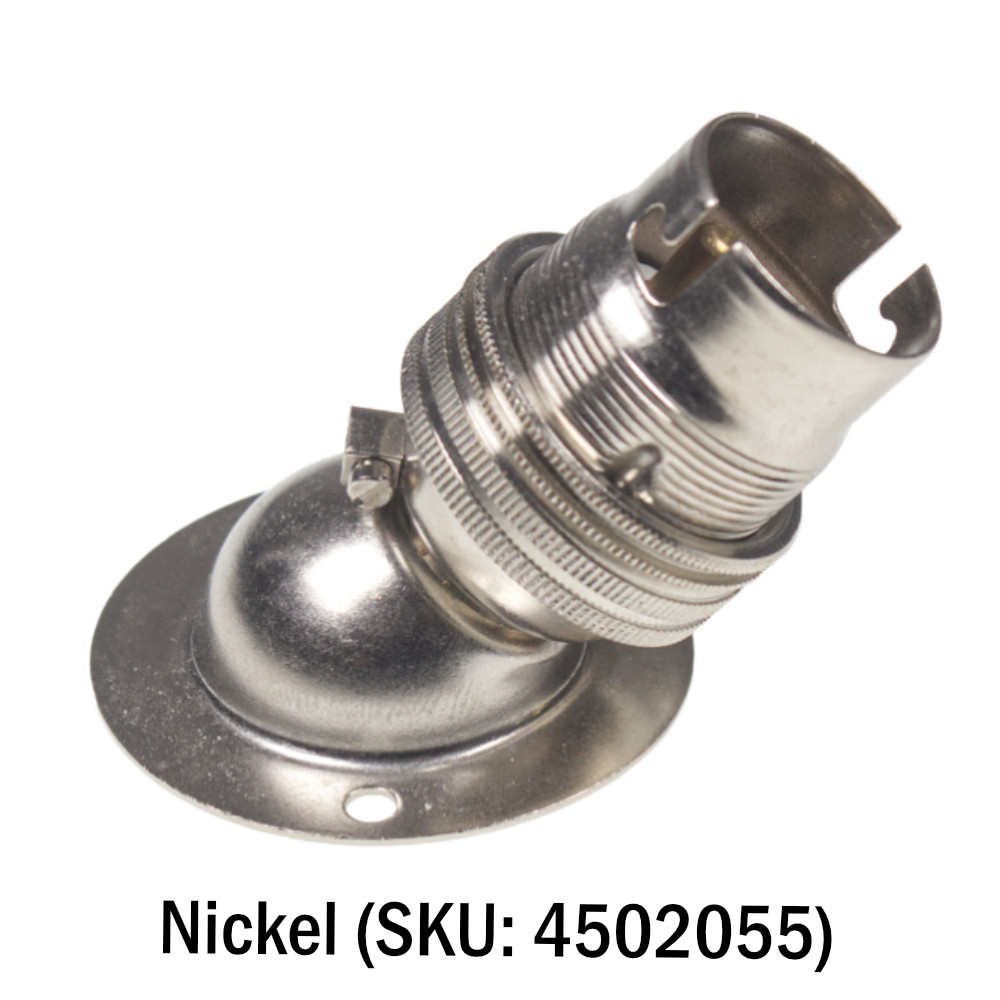

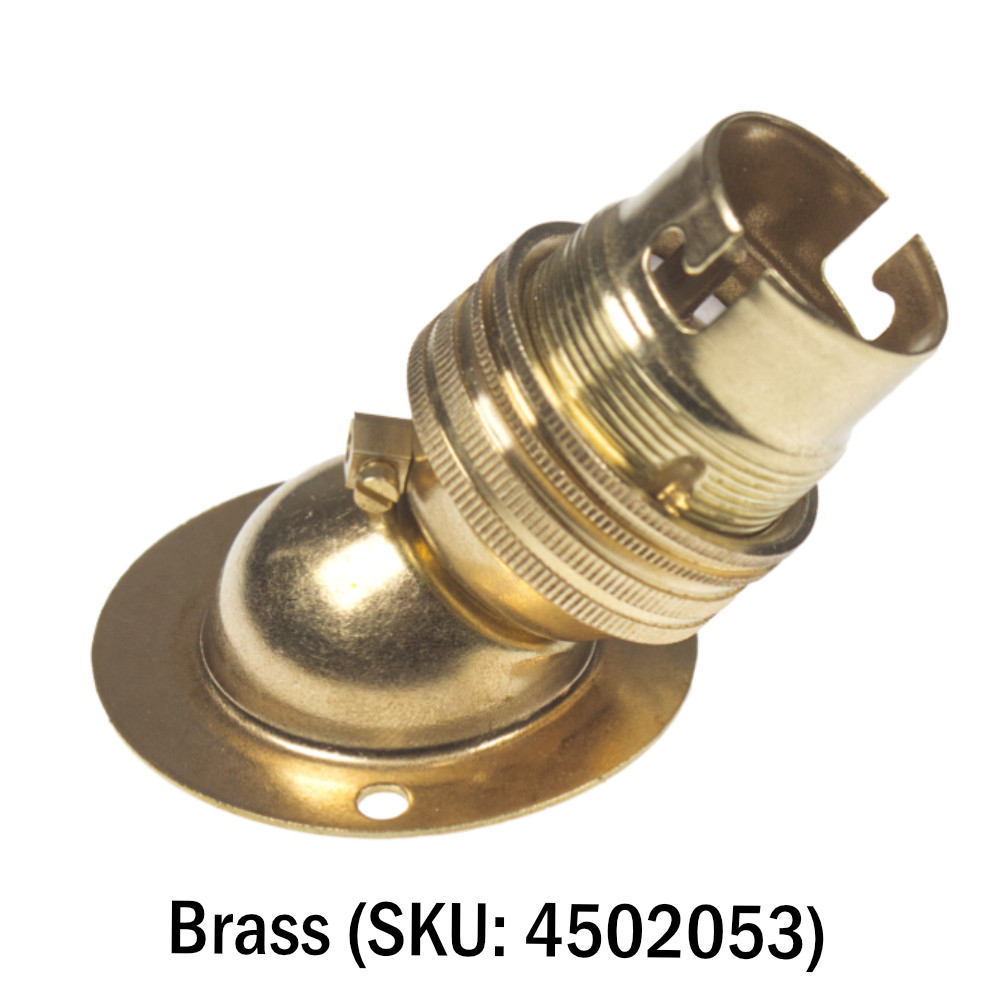

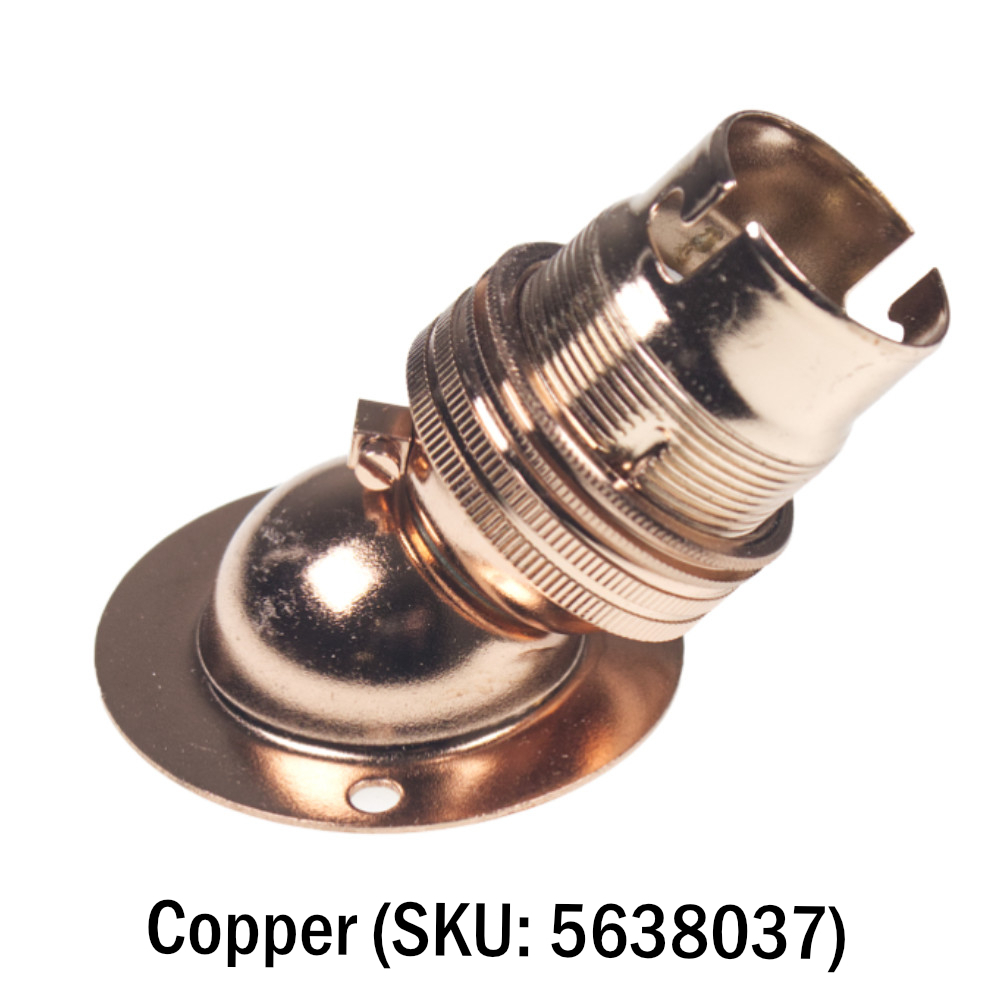

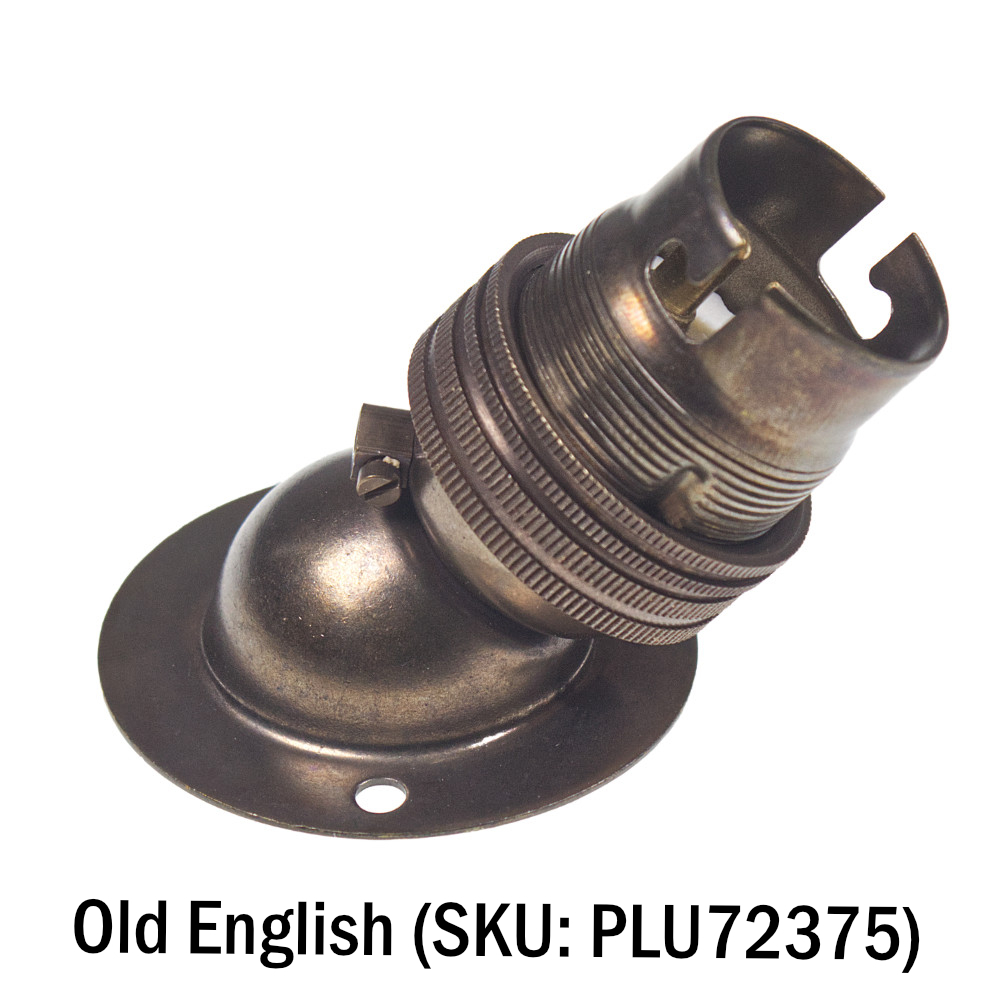

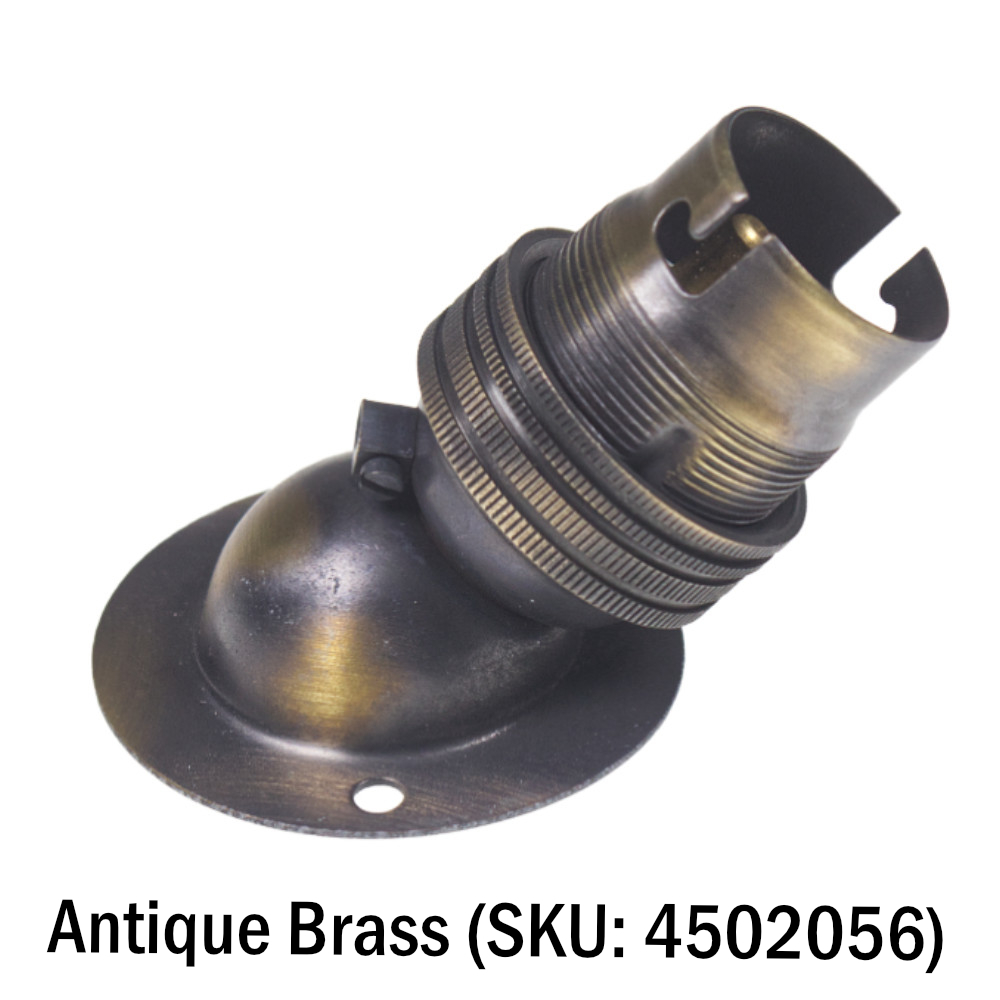

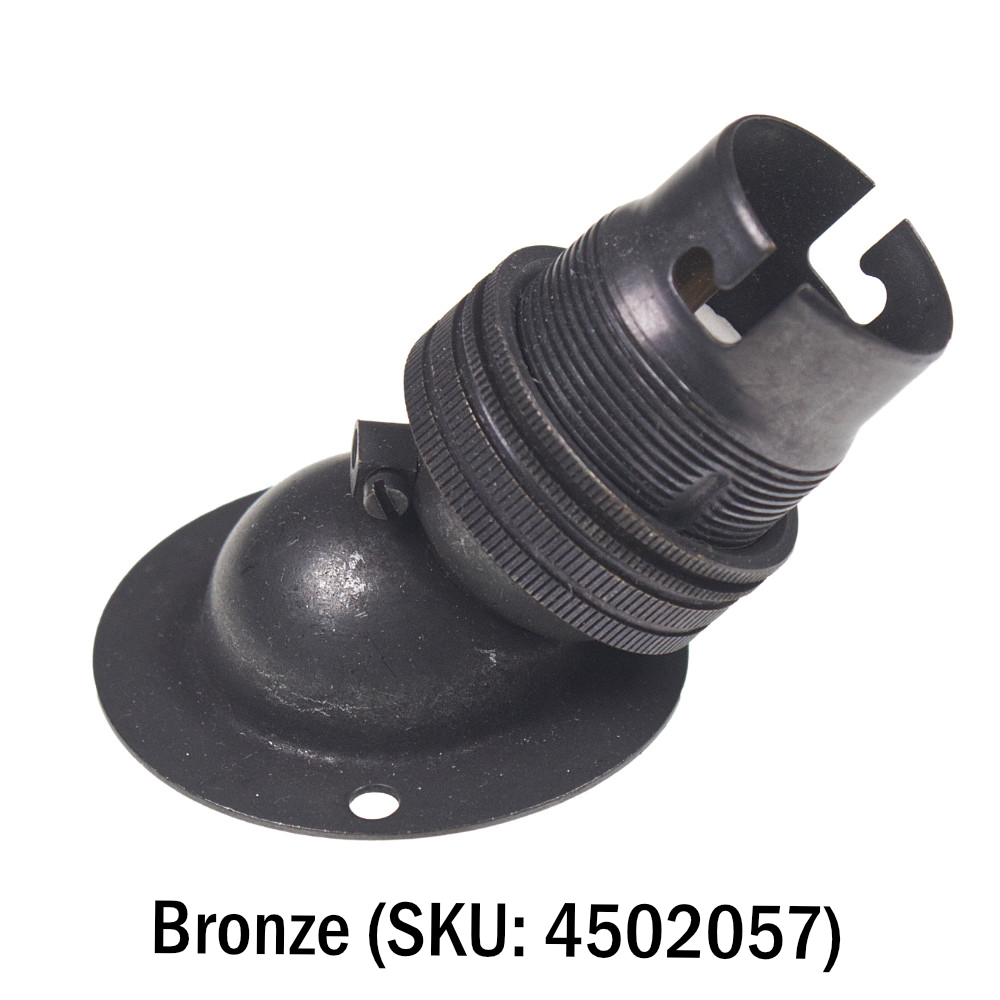

Available in the Following Colour Finishes:
- Base:
- Batten
- Colour:
- Nickel
- Switched:
- No
