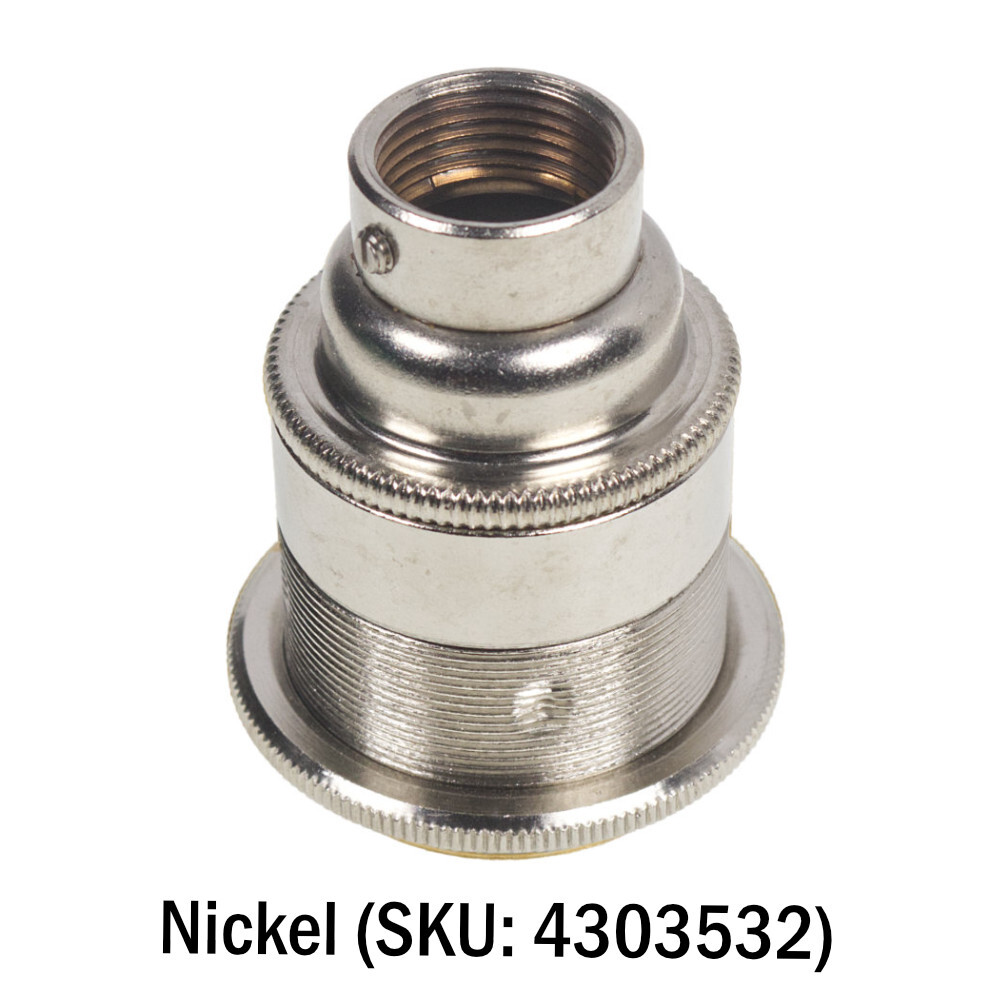

ES | E27 | Edison Screw Nickel Threaded Lampholder with 20mm Base Thread
This ES | E27 | Edison Screw Nickel Threaded Lampholder with 20mm Base Thread is a fabulous replacement for a light fitting that needs some TLC in your home or a pipe lamp that you are building yourself. Made to be used on 20mm electrical conduit as it threads straight onto the ends of the pipe work creating a stunning industrial and steam punk style light fitting. Comes with a small locking grub screw on the thread to stop the lampholder from unscrewing.
This lampholder comes in 4 parts comprising of; the cap which is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp), the centre connection unit where you will connect the live (Brown), neutral (Blue) and Earth (Yellow and Green), then the top section (skirt) which will screw over the connection unit and onto the cap, and finally the shade ring which will screw onto the exterior of the skirt.
Important Information Regarding This Lampholder

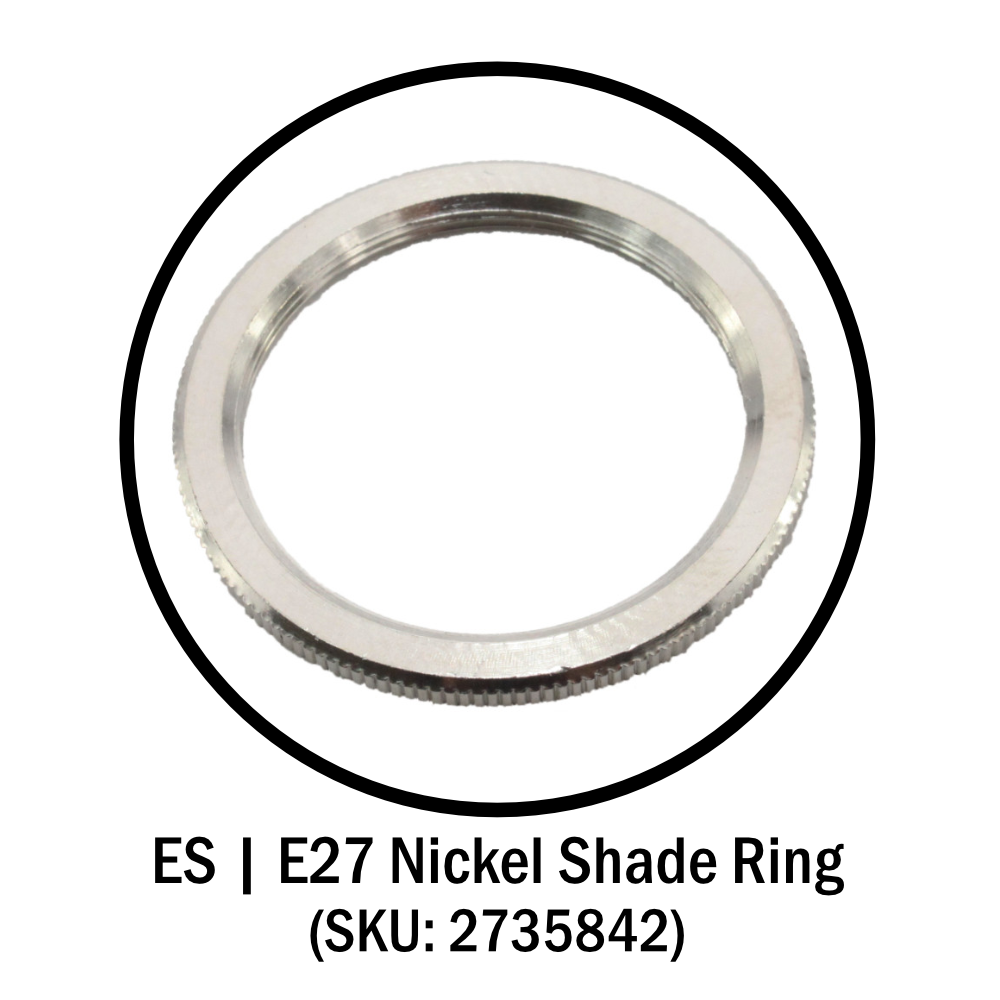

This lampholder comes with 1 shade ring which is perfect for if you are looking to hang this lampholder as a pendant, however, if you are looking to use this lampholder in a traditional upright position, for example on a table lamp, then you will require an additional second shade ring in order to clamp the shade in place. See below for a link to the compatible shade ring for this lampholder or you can simply click the tick box ('Need a 2nd Shade Ring?') above the add to cart button:
If you need additional information regarding this lampholder such as; how to wire the insert, how to assemble the lampholder or help with the locking barb, then scroll through the additional product images or visit our 'Help Centre'
Safety Info: Due to this lampholder being metal it will require a 3 Core cable to Earth the lampholder.
Please Note: The Conduit Box shown in the images is NOT included (this is for reference purposes only).
Spec:
Available in the Following Colour Finishes:
This ES | E27 | Edison Screw Nickel Threaded Lampholder with 20mm Base Thread is a fabulous replacement for a light fitting that needs some TLC in your home or a pipe lamp that you are building yourself. Made to be used on 20mm electrical conduit as it threads straight onto the ends of the pipe work creating a stunning industrial and steam punk style light fitting. Comes with a small locking grub screw on the thread to stop the lampholder from unscrewing.
This lampholder comes in 4 parts comprising of; the cap which is the section that screws onto the fixing of the light fitting (or cord grip for a pendant lamp), the centre connection unit where you will connect the live (Brown), neutral (Blue) and Earth (Yellow and Green), then the top section (skirt) which will screw over the connection unit and onto the cap, and finally the shade ring which will screw onto the exterior of the skirt.
S Lilley - UK Made Lampholder
The manufacturer of the ES | E27 | Edison Screw Nickel Threaded Lampholder with 20mm Base Thread is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
This lampholder comes with 1 shade ring which is perfect for if you are looking to hang this lampholder as a pendant, however, if you are looking to use this lampholder in a traditional upright position, for example on a table lamp, then you will require an additional second shade ring in order to clamp the shade in place. See below for a link to the compatible shade ring for this lampholder or you can simply click the tick box ('Need a 2nd Shade Ring?') above the add to cart button:
If you need additional information regarding this lampholder such as; how to wire the insert, how to assemble the lampholder or help with the locking barb, then scroll through the additional product images or visit our 'Help Centre'
Safety Info: Due to this lampholder being metal it will require a 3 Core cable to Earth the lampholder.
Please Note: The Conduit Box shown in the images is NOT included (this is for reference purposes only).
Spec:
- Height: 61mm
- Diameter: 38mm
- Thread: M20 x 1.5mm Pitch
- Shade Rings: 1
- Material: Brass
- Finish: Nickel
Available in the Following Colour Finishes:
|
|
|
|
|
|
- Colour:
- Nickel
- Switched:
- No
- Base:
- 20mm
- Shade Compatible:
- Yes
- Material:
- Brass
- Max Wattage:
- 60W
- Lamp Type:
- ES | E27
