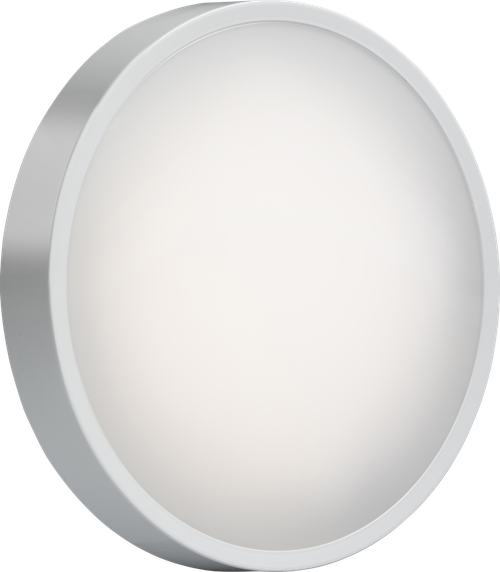

BT Evo offers superior commercial, industrial, indoor and outdoor illumination, reducing complexity by combining triple wattage and colour adjustments into a single slimline housing.
The complete range is constructed from anti-corrosive material, with an IP65 weatherproof rating and an IK10 impact rating. A UV-stabilised body ensures a long life outdoors.
Push-fit terminals, a hinged gear tray and a twist lock diffuser make it perfect for a hassle-free installation.
- DALI control
- Push-dim
- 3000K/ 4000K/5700K adjustable
- 14W/ 16W/ 18W adjustable
- IP65 and IK10
- UV-stabilised body and diffuser
- Push-fit terminals with loop-in-loop-out capabilities, hinged gear tray, twist lock diffuser and a clip-on bezel
- Class II
- 20mm conduit entry points on four sides plus rear BESA mounting points
- Offered standard as white with optional bezels in Matt Black, Chrome, Eyelid Matt Black and Eyelid Grey.
- 14W - 1,400lm at 4000K
- 16W - 1,600lm at 4000K
- 18W - 1,800lm at 4000K
Specification
| Diameter | 300 mm |
|---|---|
| Projection | 65 mm |
| Construction | Polycarbonate |
| Finish | White |
| Class | II |
| IP Rating | IP65 |
| Primary Voltage | 230V 50Hz |
| Diffuser | Opal |
| Light Technology | SMD LED |
| Dimmable | DALI/PUSH DIM |
| CCT | 3000/4000/5700 |
| Beam Angle | 130 |
| Light Colour | CCT |
| Lumens | 1300/1400/1400,1500/1600/1500,1600/1800/1700 |
| CRI | ≥85 |
| Driver Type | Constant Current |
| Warranty | 5 years |
- Colour:
- White
- Material:
- Plastic
- Dimmable:
- Yes
- IP Rating:
- IP65
- Colour Temperature:
- 3000K | Warm White
- Colour Temperature:
- 4000K | Cool White
