BC | B22 | Bayonet Cap Brass Batten Lampholder with 52mm Base
This BC | B22 | Bayonet Cap Brass Batten Lampholder with 52mm Base is the perfect solution for building your very own Hollywood style vanity inspired mirror unit, this batten lampholder can be attached directly to a base and is also a fabulous lampholder for creating lighting around the front of stages.
The lampholder comes in four parts. The cap includes the batten base, which attaches to your fitting, and also contains an earth block for safely earthing the lampholder. The centre connection unit is where the live (brown) and neutral (blue) wires are connected. The skirt then screws over the connection unit and onto the cap to enclose the wiring. Finally, there are two rings: the locking ring (thicker), which secures the base and skirt together, and the shade ring (thinner), which allows you to clamp a lampshade onto the lampholder.
Due to this lampholder being metal it will require a 3 Core cable to Earth the lampholder.
If you need additional information regarding this product, such as; disassembling the lampholder, alignment, product dimensions and wiring the connection unit, then scroll through the additional product images or visit the 'Help Centre' on our website.
Specification:
Available in the Following Colour Finishes:
This BC | B22 | Bayonet Cap Brass Batten Lampholder with 52mm Base is the perfect solution for building your very own Hollywood style vanity inspired mirror unit, this batten lampholder can be attached directly to a base and is also a fabulous lampholder for creating lighting around the front of stages.
The lampholder comes in four parts. The cap includes the batten base, which attaches to your fitting, and also contains an earth block for safely earthing the lampholder. The centre connection unit is where the live (brown) and neutral (blue) wires are connected. The skirt then screws over the connection unit and onto the cap to enclose the wiring. Finally, there are two rings: the locking ring (thicker), which secures the base and skirt together, and the shade ring (thinner), which allows you to clamp a lampshade onto the lampholder.
S Lilley - UK Made Lampholder
The manufacturer of the BC | B22 | Bayonet Cap Brass Batten Lampholder with 52mm Base is S. Lilley & Son Limited which is a family business, based in Birmingham and is one of the UKs leading manufacturers of specialised lighting components. They were founded in 1840, so we know we are in good hands and the quality of their products really speak for themselves. All of their components are BS EN ISO 9001 registered, and the company is LIA (Lighting Industry Association) approved.
If you need additional information regarding this product, such as; disassembling the lampholder, alignment, product dimensions and wiring the connection unit, then scroll through the additional product images or visit the 'Help Centre' on our website.
Specification:
- Height: 37mm
- Lampholder Diameter: 26mm
- Base Diameter: 52mm
- Lamp Style: BC | B22 | Bayonet Cap
- Material: Brass
- Finish: Brass

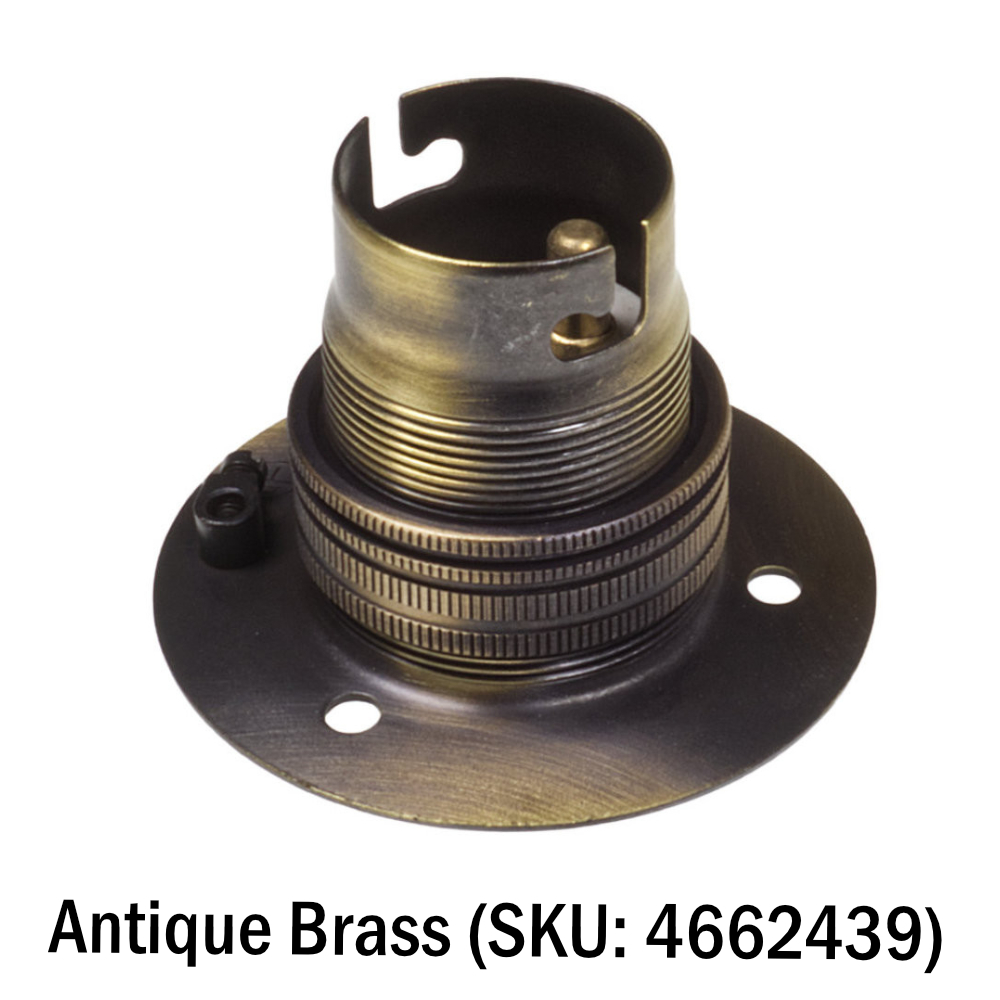

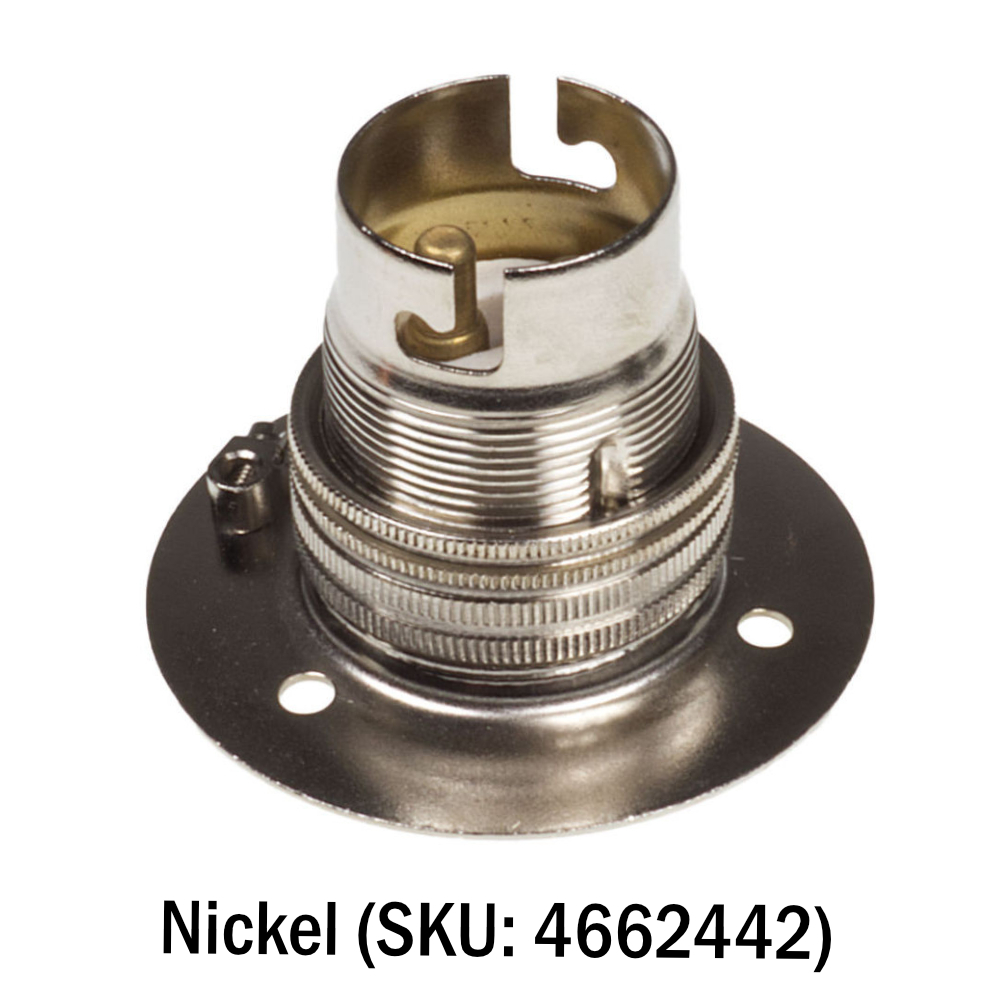

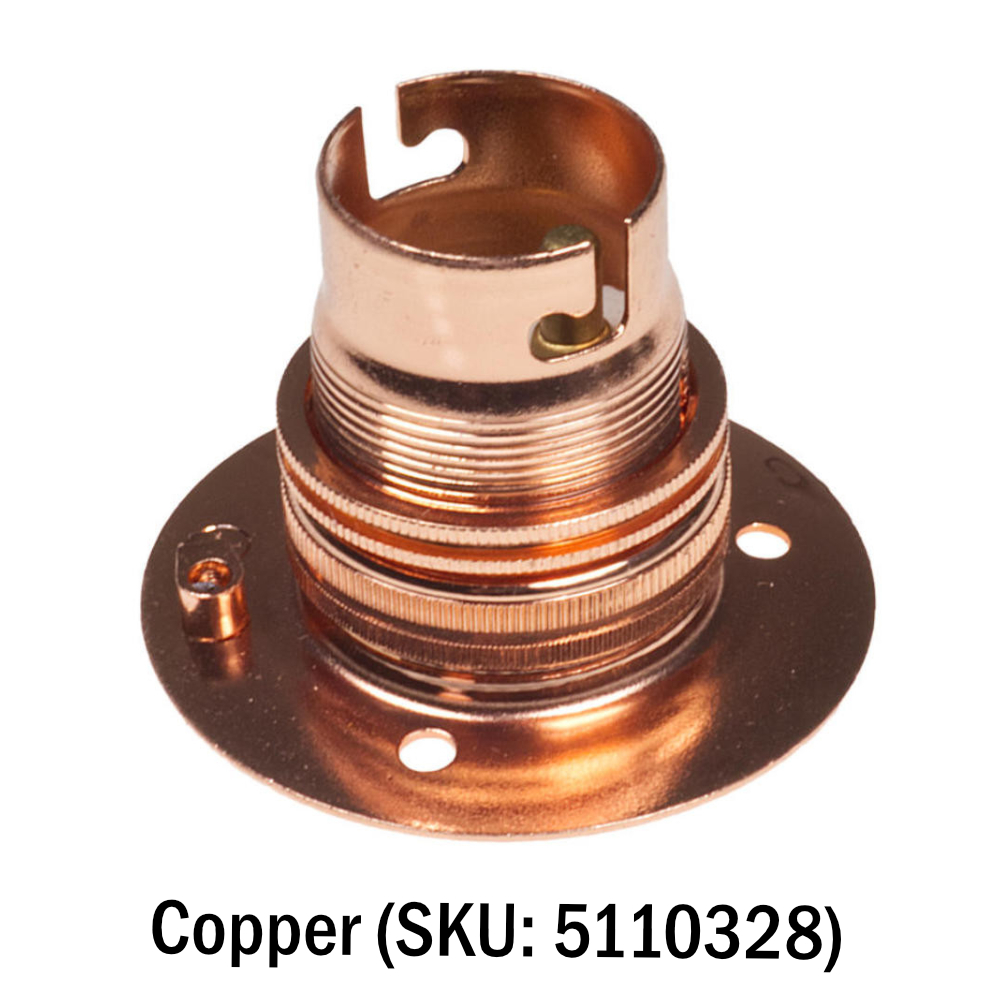

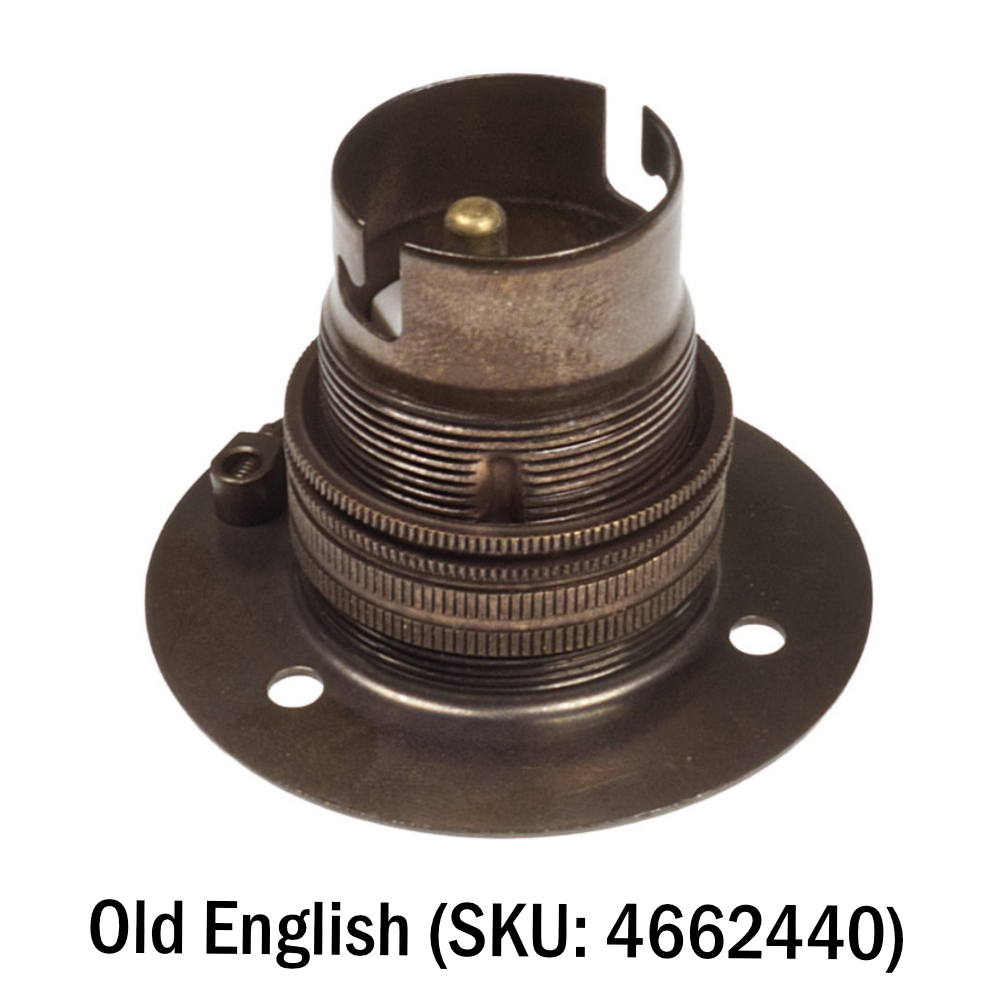

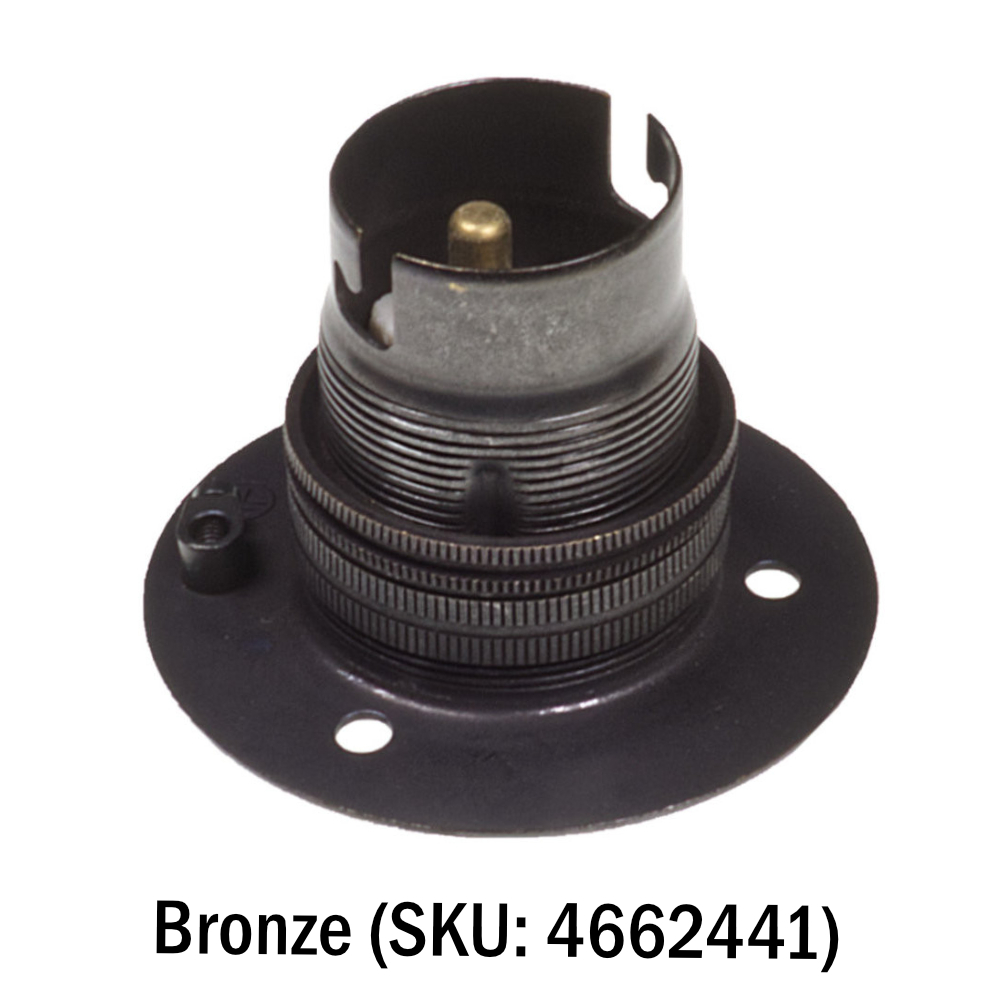

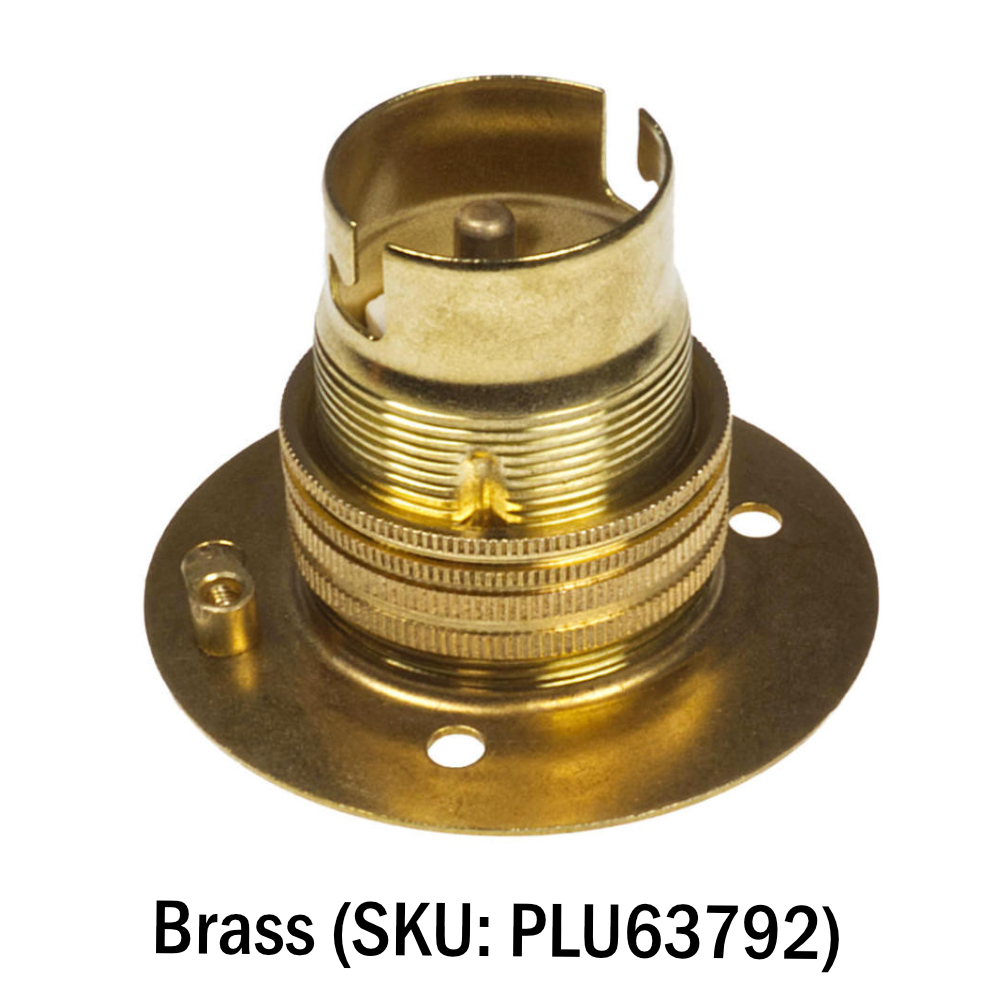

Available in the Following Colour Finishes:
- Colour:
- Brass
- Switched:
- No
- Base:
- Batten
