Switched BC | Bayonet Cap Wooden Base KIT15
Create your own wooden table lamp with the Switched BC Bayonet Cap Wooden Base KIT15, a simple and reliable kit designed to convert a wooden base into a fully functional light. Featuring a switched BC (B22) lampholder and a pre-wired cable with UK plug, this kit makes creating your own lamp quick and straightforward.
Designed to be securely fixed to a wooden base (minimum 30mm diameter), it also includes an optional extender, allowing you to raise the lampholder above the surface for added flexibility and style. Ideal for DIY lamp projects, repairs, or custom lighting designs, this kit provides a neat and practical solution to creating your own unique wooden lamp.
What's Included in this Kit?
Simply choose your lampholder colour, extender height and cable colour to complete the kit.
Comes with full instructions.
If you need help / guidance in installing this kit then visit our help centre and search for "Kit 15" or click on the following link for a step-by-step guide on how to install this kit: 'Kit 15 Installation Guide'
Please Note: Wooden base is NOT included in the kit.
Specification:
Lampholder
Create your own wooden table lamp with the Switched BC Bayonet Cap Wooden Base KIT15, a simple and reliable kit designed to convert a wooden base into a fully functional light. Featuring a switched BC (B22) lampholder and a pre-wired cable with UK plug, this kit makes creating your own lamp quick and straightforward.
Designed to be securely fixed to a wooden base (minimum 30mm diameter), it also includes an optional extender, allowing you to raise the lampholder above the surface for added flexibility and style. Ideal for DIY lamp projects, repairs, or custom lighting designs, this kit provides a neat and practical solution to creating your own unique wooden lamp.
What's Included in this Kit?
|
|
|
|
|
|
|
Simply choose your lampholder colour, extender height and cable colour to complete the kit.
Comes with full instructions.
If you need help / guidance in installing this kit then visit our help centre and search for "Kit 15" or click on the following link for a step-by-step guide on how to install this kit: 'Kit 15 Installation Guide'
Please Note: Wooden base is NOT included in the kit.
Specification:

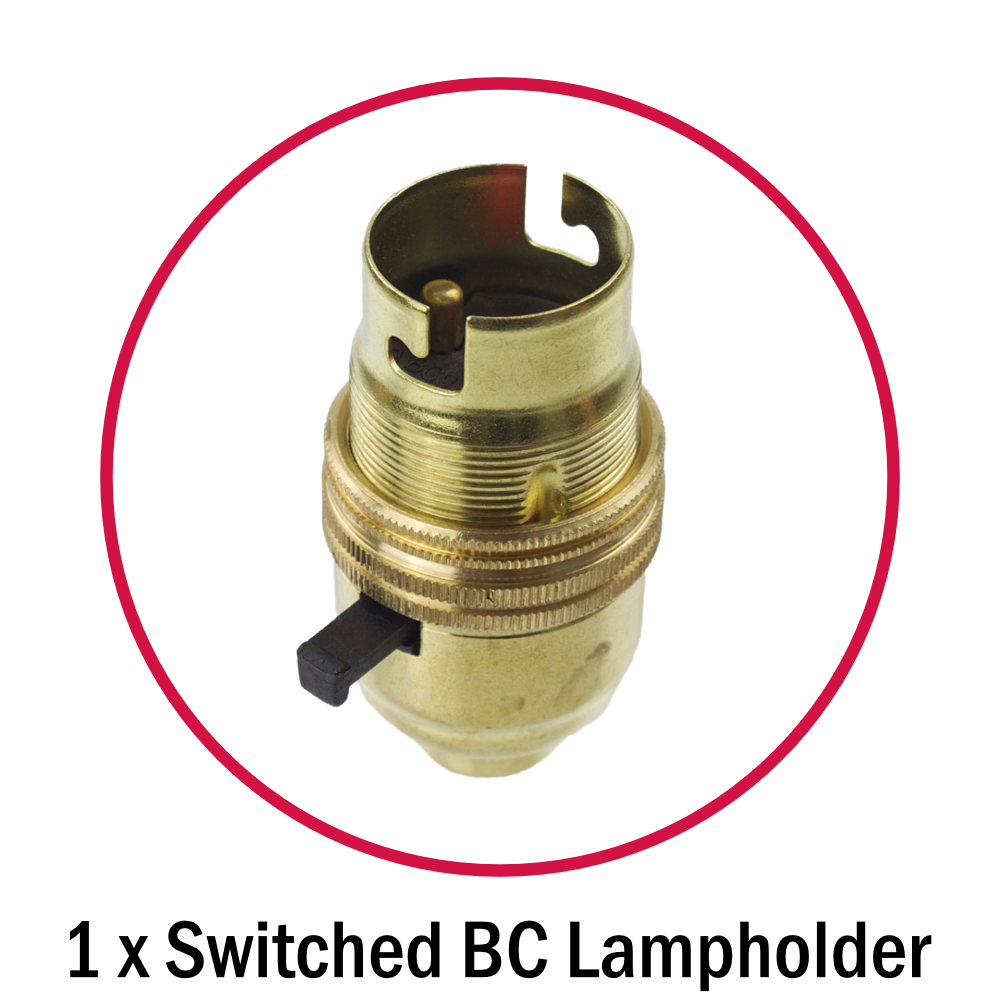

Lampholder
- Lamp Cap: BC | B22 | Bayonet Cap
- Thread: 10mm x 1mm Pitch
- Height: 62.6mm
- Diameter: 31.6mm
- Min Shade Hole Size: 26mm
- Max Shade Hole Size: 31mm
- Max Wattage: 60w
- Material: Brass
- Cable Size: 3 x 0.75mm
- Cable Length: 2.5m
- UK 3-Pin Plug

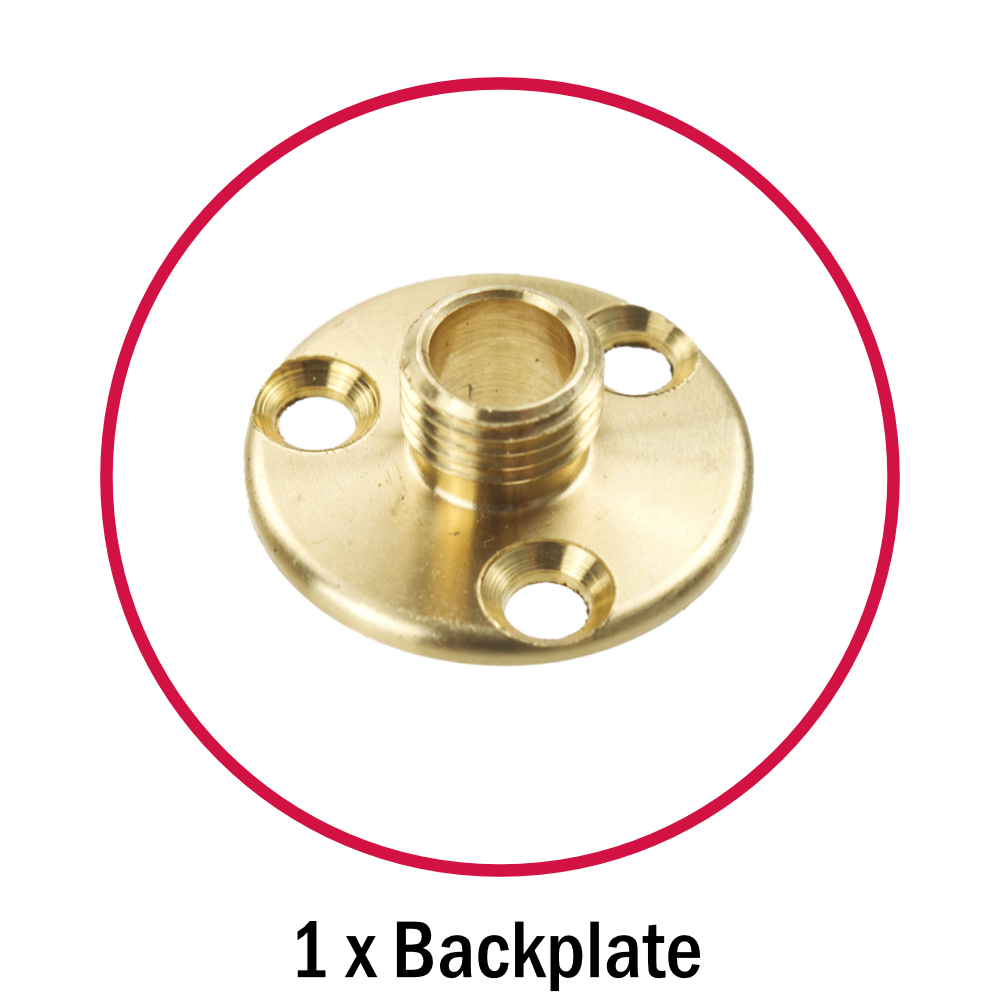

- Fixing Disc Diameter: 25mm

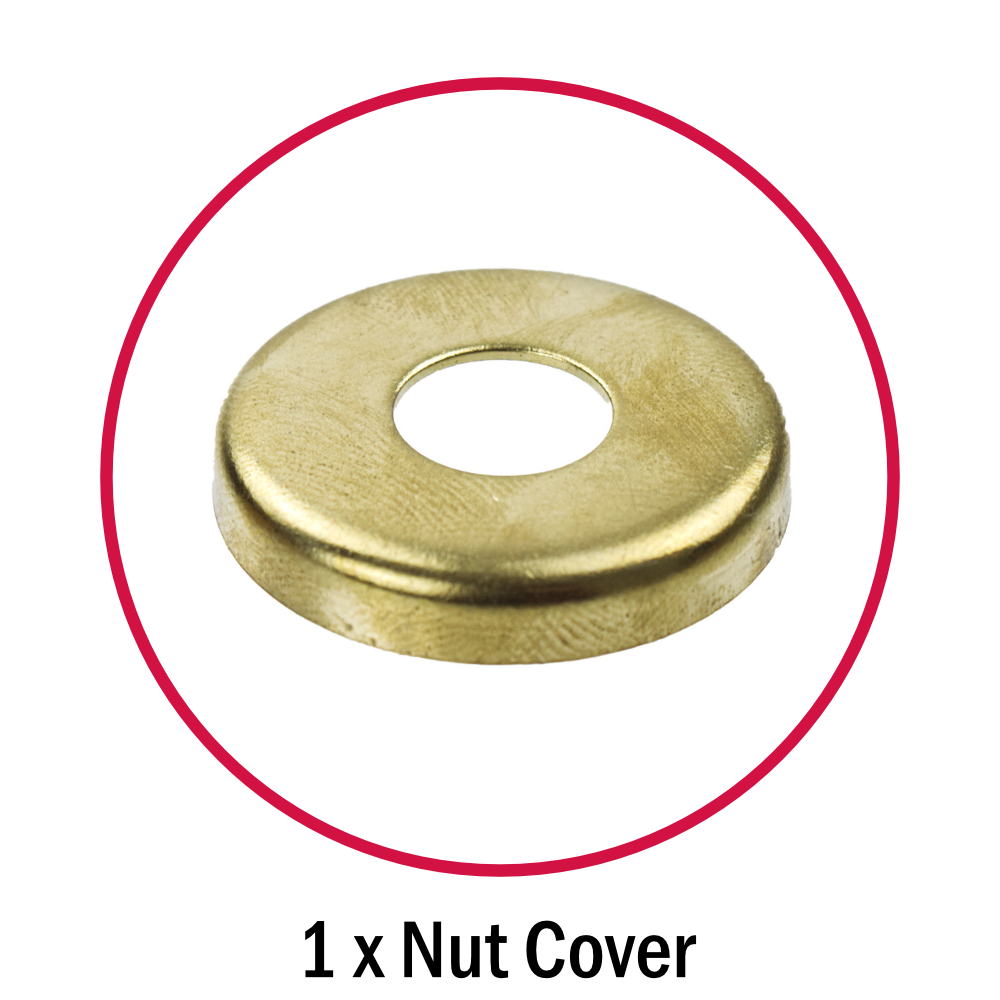

- Nut Cover Diameter: 27mm
- Nut Cover Height: 5mm

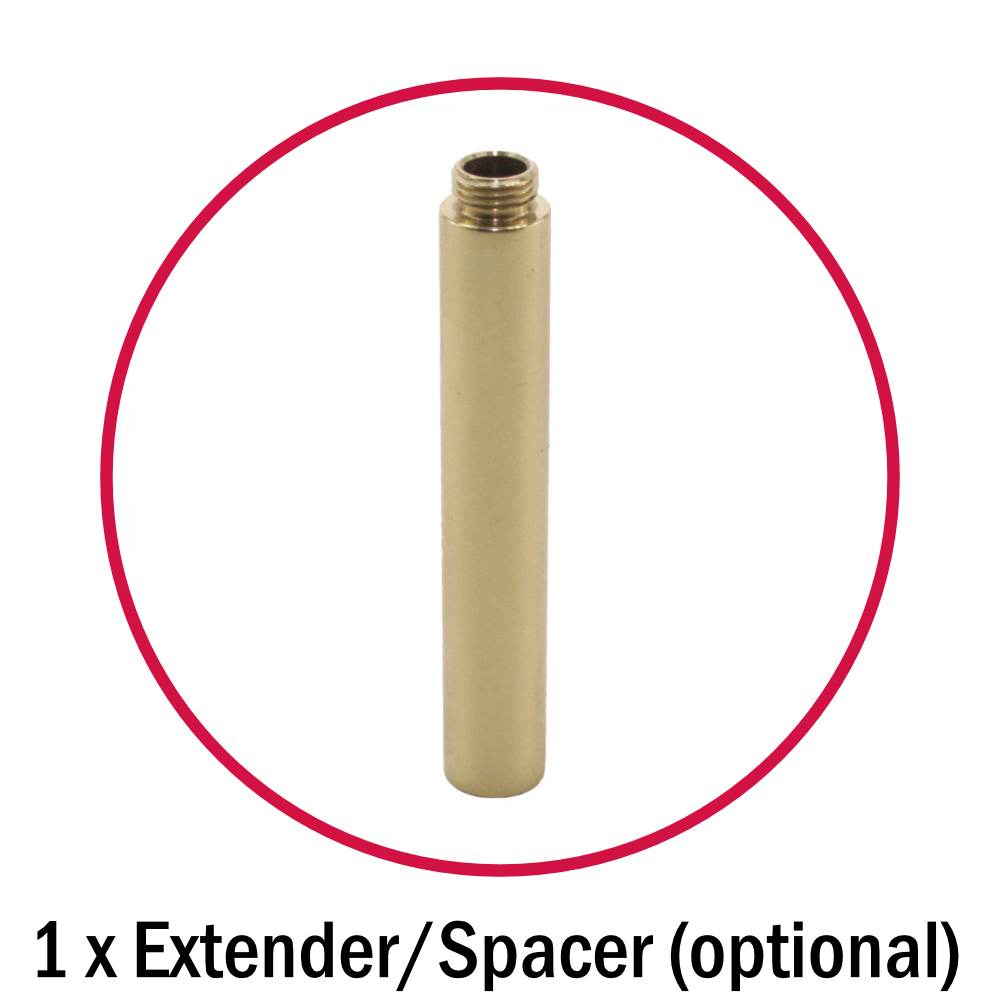

- Extender Diameter: 13mm
- Extender Internal Diameter: 7mm
